TP4056 Li-ion Charger Module: Wiring, Protection & Common Mistakes

TP4056 wiring – Getting Started

The TP4056 is a popular linear Li‑ion charger that many Indian makers use because it needs only a 5 V USB source and a single‑cell 18650. In the first 100 words we introduce the TP4056 wiring basics, then dive into safety, component choices and troubleshooting. Before you begin, gather a USB cable, a 5 V regulator (if not using USB), a 1 A‑rated Li‑ion cell, and a few passive components. For a ready‑made module, see Voltros' TP4056 Micro USB Lithium Battery Charger Module which already includes the required resistors and a protection IC.

Key pins on the module are:

• VCC – 5 V input (USB or adapter).
• GND – Common ground.
• B+ – Battery positive terminal.
• B- – Battery negative (ground).

Follow the wiring steps below to ensure a solid connection.

Selecting the Right Power Source

Choosing a stable 5 V supply is crucial. USB ports on phones often limit current to 500 mA, which will slow charging. Use a wall adapter rated at least 1 A, or a power bank that supports 5 V / 2 A. Check the adapter’s specifications before connecting to avoid undervoltage.

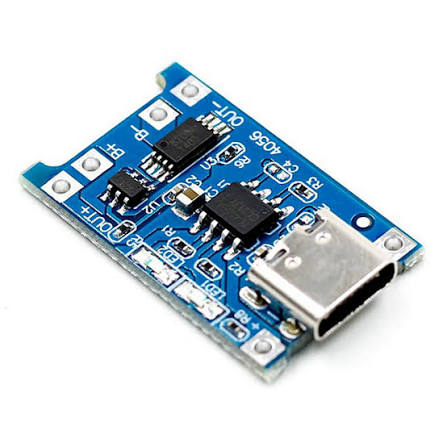

When using a USB‑C source, the TP4056 1A Li-ion Lithium Battery Charging Module with Current Protection – Type C offers a convenient Type‑C connector, reducing the need for extra cables.

Always verify the voltage with a multimeter; the source should read between 4.9 V and 5.1 V under load. If the voltage droops, add a low‑dropout regulator or a dedicated 5 V USB hub.

Connecting the Battery Safely

Connect the battery’s positive terminal to the B+ pad and the negative to B‑. Ensure the cell is a single‑cell 3.7 V Li‑ion or Li‑Polymer; the TP4056 does not support multi‑cell packs without additional circuitry (Zbotic guide).

Use short, thick wires (22‑24 AWG) to minimise voltage drop, especially if the charger will deliver the full 1 A. For a permanent build, solder directly to the pads and reinforce with heat‑shrink tubing.

Check the battery’s health before connecting. A swollen or damaged cell should never be charged. If you are re‑using cells, measure the open‑circuit voltage; it must be above 2.5 V to avoid triggering the charger’s protection.

Adding Protection and Monitoring

While the TP4056 includes a built‑in charge‑termination at 4.2 V, it does not protect against over‑discharge or short‑circuit during operation. Adding a dedicated protection IC (e.g., DW01) in series with the battery is recommended for portable projects.

To monitor charging status, the module provides two LEDs: one red for charging and one blue for full charge. If your module lacks LEDs, you can connect external indicators to the STAT pin as described in the Zbotic wiring guide.

For projects that need to power the load while charging, consider a load‑share circuit or a power‑path controller. The Reddit discussion warns that using TP4056 alone for high‑current draw while charging can lead to unsafe conditions (Reddit PSA).

Worked Example: Charging a 18650 for a Portable Sensor

Suppose you are building a weather sensor that runs on a 18650 cell and needs to charge from a USB‑C power bank. Follow these steps:

• 1. Connect the USB‑C power bank to the VCC and GND pads of the Type‑C TP4056 module.
• 2. Solder the 18650’s B+ and B‑ leads to the module’s B+ and B‑ pads.
• 3. Add a DW01 protection IC between the battery and the module’s B‑ pad.
• 4. Attach a red LED (with 1 kΩ resistor) to the STAT pin for charging indication.

After connecting, the charger will draw up to 1 A, bring the cell to 4.2 V, then switch to trickle mode. Monitor the LEDs: red on while charging, blue on when full.

Test the setup by measuring the battery voltage with a multimeter; it should not exceed 4.2 V. If you notice the voltage climbing higher, disconnect immediately – this indicates a wiring error or a faulty module.

Common Mistakes and How to Avoid Them

Mistake 1: Using a multi‑cell pack. The TP4056 is designed for a single cell. Attempting to charge a 2‑cell pack can cause over‑voltage on the second cell. Use a dedicated multi‑cell charger or add balancing circuitry.

Mistake 2: Ignoring the input current limit. Supplying less than 1 A will extend charging time and may cause the charger to enter a constant‑current limit early. Verify your adapter’s rating.

Mistake 3: Overlooking polarity. Reversing B+ and B‑ will damage the TP4056 instantly. Double‑check the markings on the module before soldering.

Mistake 4: Not providing thermal relief. The TP4056 can get warm at full 1 A. If the module is enclosed, add a small heatsink or ensure airflow.

Checklist Before Power‑Up

Use this quick checklist to ensure a safe first power‑up:

• ✅ Verify 5 V input voltage with a multimeter.
• ✅ Confirm battery voltage is between 2.5 V and 4.2 V.
• ✅ Check all solder joints for shorts.
• ✅ Ensure correct polarity on B+ and B‑.
• ✅ Attach protection IC if the module does not include one.
• ✅ Confirm LED indicators are wired to the STAT pin correctly.

Once the checklist is clear, plug in the power source and observe the LEDs. If the red LED stays on for more than 5 hours, re‑measure the battery voltage – it may be defective.

FAQ

Q: Can I use the TP4056 to charge a Li‑Polymer cell?

A: Yes, the TP4056 works with both Li‑ion and Li‑Polymer single‑cell batteries, provided the cell voltage range is 2.5 V‑4.2 V.

Q: What happens if the input voltage drops below 5 V?

A: The charger will reduce the charging current, leading to longer charge times. If the voltage falls too low, the charger may stop altogether.

Q: Do I need a separate temperature sensor?

A: The basic TP4056 does not include temperature monitoring. For high‑current applications, add a thermistor and a cutoff circuit to protect the battery.

Q: Is the module safe for continuous charging overnight?

A: Yes, the TP4056 automatically terminates charging at 4.2 V and switches to a trickle mode, making it safe for unattended charging.

Q: Can I power my circuit directly from the TP4056 output?

A: You can draw limited current (< 500 mA) while charging, but for higher loads use a separate power‑path controller to avoid overloading the charger.
