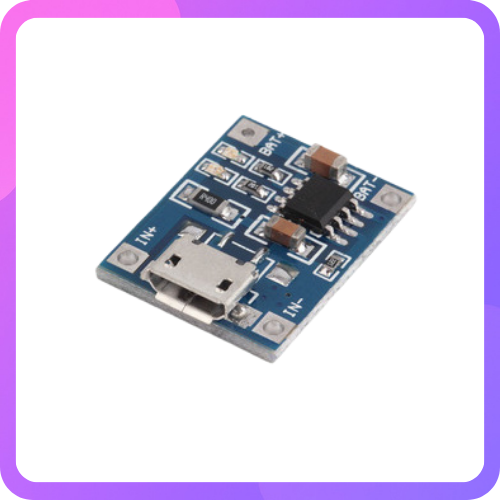

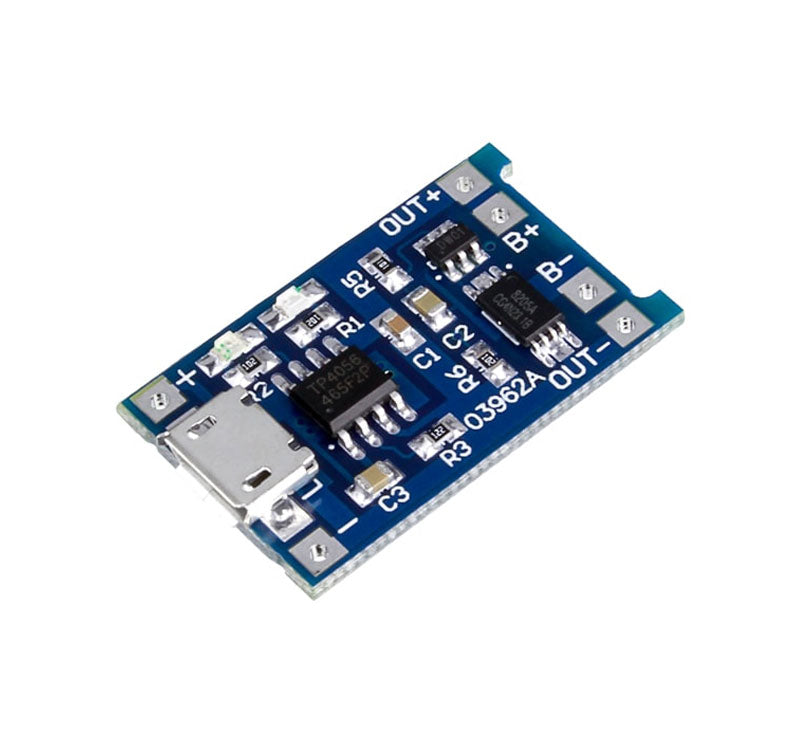

TP4056 Micro USB Lithium Battery Charger Module 1A

This TP4056 module with micro USB input provides 1A charging for lithium batteries. Features overcharge and over-discharge protection for safe operation.

• Input voltage : 4.5V ~ 5.5V.
• Input Interface: Micro USB port.
• Charging method: linear charge.
• A full charge voltage: 4.2V.
• Power: 4.2 w.
• Charging accuracy: 1.5%.
• Operating Temperature: -10 to +85^ºC
• Charging indicator: LED indicators for charging and full charging.

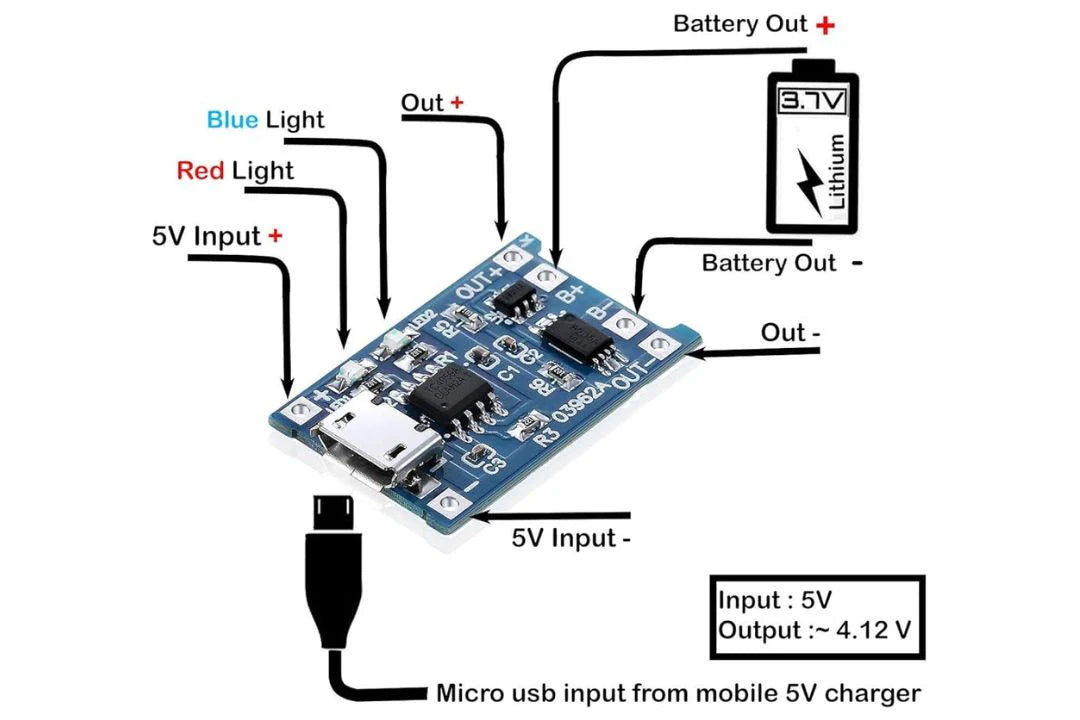

The TP4056 1A Li-Ion Lithium Battery Charging Module – Micro B USB is a 3.7V lithium battery charger module has onboard Micro USB interface. With Micro-USB onboard connector, you can directly connect to computer USB port for battery charging. If USB is not available you can use an external source voltage at IN+/IN- pads, great for DIY projects. It is small size and lightweight.

Manufactured under fully machinery processing. Each module is tested OK before shipment from Robu.in so it has high reliability for the best performance. In conclusion, it is special design for a single lithium battery charging.

TP4056 Other features include the current monitor, under-voltage lockout, automatic recharge, and two status pin to indicate charge termination and the presence of an input voltage.

Note:

1. This breakout board does not have overcurrent protection.
2. Connect Ampere meter in series with 5V input end.
3. The charging current is best to be 0.37 times of the battery capacity,
4. Charging wire can’t be too thin or too long while interfacing.
5. Make sure the board has good contact with the battery.
6. Chip at work about 60 degrees fever is normal.
7. Input reverse connection has no effect on the chip. Rather the output (battery’s) reverse connection will burn out the chip.

Features :

1. Charging indicator: LED indicators for charging and full charging.
2. Charge Current: 1A (default), modify the onboard resistor to adjust the charging current according to the table below.
3. Use mature charging chip TP4056 for simple peripheral circuits, good protection performance, and high charging accuracy.
4. Fully machinery automated processing, all patch parts manufacturing.
5. Charging current can be adjusted by just changing the circuit board’s fixed resistors. It can change the output to the 100mA-1000mA, very conveniently. (refer pdf linked below).

Package Includes :

1 x TP4056 1A Li-Ion Lithium Battery Charging Module – Micro B USB
