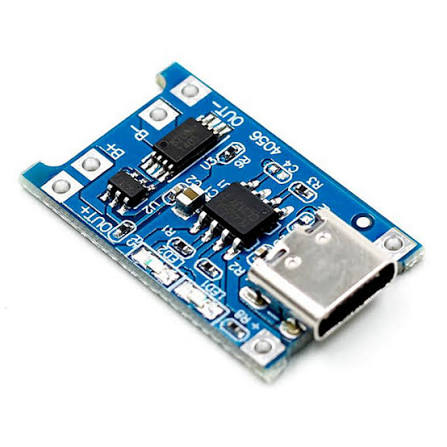

TP4056 1A Li-ion Lithium Battery Charging Module with Current Protection – Type C

The TP4056 1A Li-Ion Battery Charging Module (Type C) is the perfect solution for safely charging single-cell 3.7V lithium-ion (Li-Ion) cells — including 18650s — that lack a built-in protection circuit. Built around the TP4056 charger IC and DW01 battery protection IC, this compact module delivers up to 1A charge current and automatically cuts off when charging is complete.

The integrated protection IC monitors battery voltage and disconnects the load when it drops below 2.4V, preventing over-discharge. It also guards against over-voltage and reverse polarity connection — giving you reliable, worry-free charging.

Features

• Type-C USB input for modern, reversible connectivity
• Red LED — charging in progress
• Green LED — charging complete
• Current Protection: Yes
• Reverse Polarity Protection: Yes
• Based on TP4056 IC — simple peripheral circuit, high charging accuracy
• Fully automated machine processing for consistent quality

Package Includes

• 1 × TP4056 1A Li-ion Lithium Battery Charging Module with Current Protection – Type C
