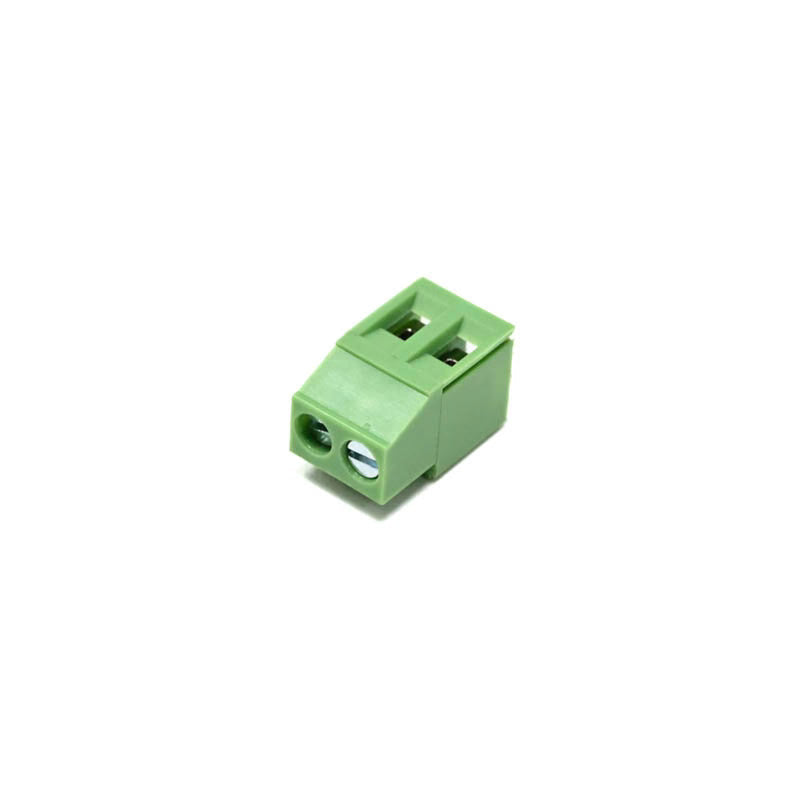

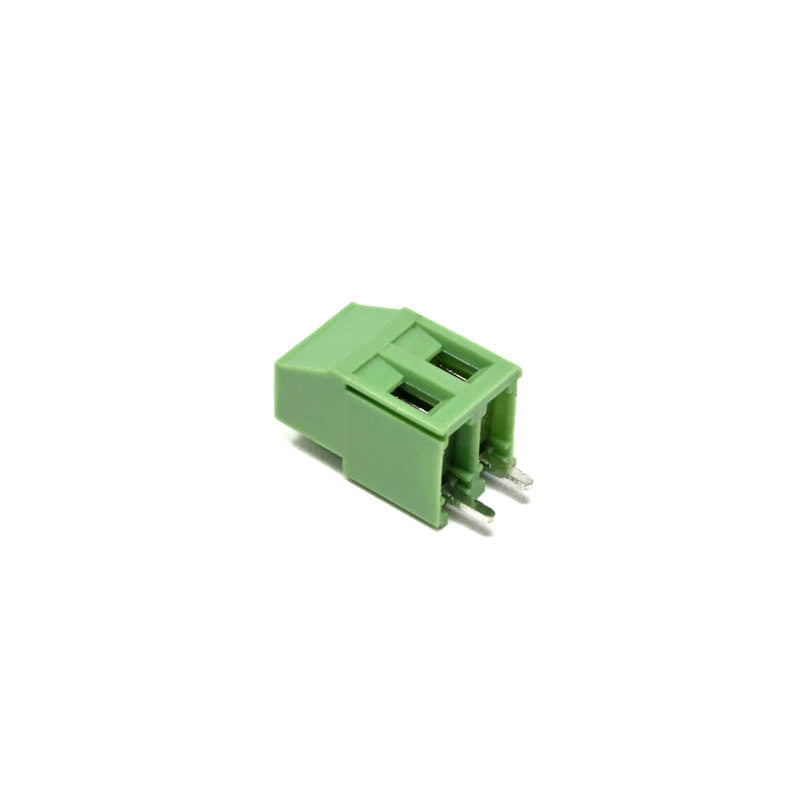

XY129VA-5.08-XINYA-2 Pin Screw Terminal Block(Green)

XY129VA-5.0-XINYA-2 Pin Screw Terminal Block(Green). A terminal block is an electrical component used to connect and organize wires in a circuit. It typically consists of multiple terminals where wires can be inserted and securely fastened, providing a reliable connection point for electrical circuits.

Specification:

1. Pitch Spacing (mm): 5.08
2. No. of Pins: 2
3. No. of Poles: 3 to 24
4. Voltage Rating (V): 300
5. Current Rating (A): 20
6. Color: Green
7. Operating Temperature(°C): -40 to 105

Note: For more technical information, refer the datasheet in Attachments.

Package Includes:

1 x XY129VA-5.0-XINYA-2 Pin Screw Terminal Block(Green)
