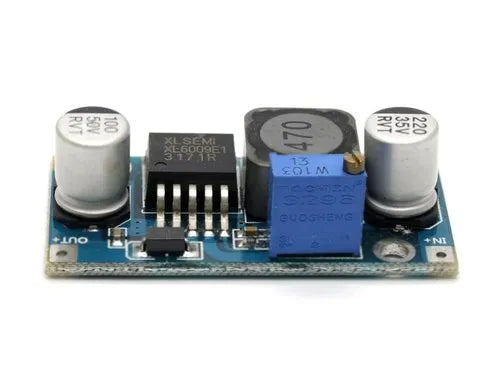

XL6009 DC-DC Step-Up (Boost) Converter Module

The XL6009 DC-DC Step-Up Converter Module is a non-isolated boost voltage regulator designed to provide a stable and adjustable output voltage with high efficiency. It is based on the XL6009E1 high-frequency switching chip, offering improved performance and better efficiency compared to traditional LM2577-based designs.

With built-in 4A high-efficiency MOSFET switching, the module can achieve conversion efficiency of up to 94%, depending on input and output conditions. Its high switching frequency of 400KHz allows the use of smaller filter capacitors, resulting in reduced ripple and compact overall design.

The output voltage is adjustable, making it suitable for a wide range of DC voltage boosting applications including battery-powered devices, DIY electronics, LED drivers, and embedded systems.

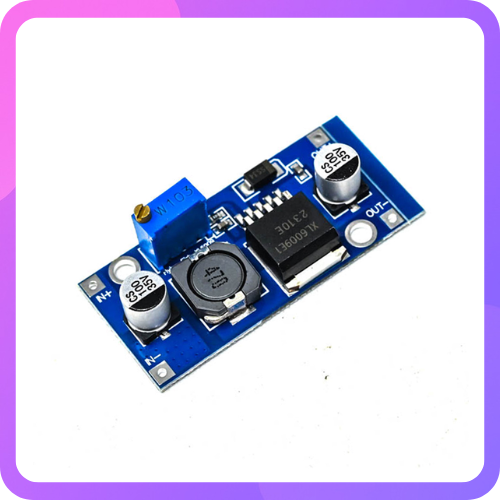

The board includes clearly labeled input and output pins. IN+ and IN− are used for the input supply connection, while OUT+ and OUT− provide the boosted output voltage.

This compact and easy-to-use voltage regulator module is ideal for projects requiring reliable DC step-up conversion.

Package Includes:
1 x XL6009 DC-DC Step-Up Converter Module
