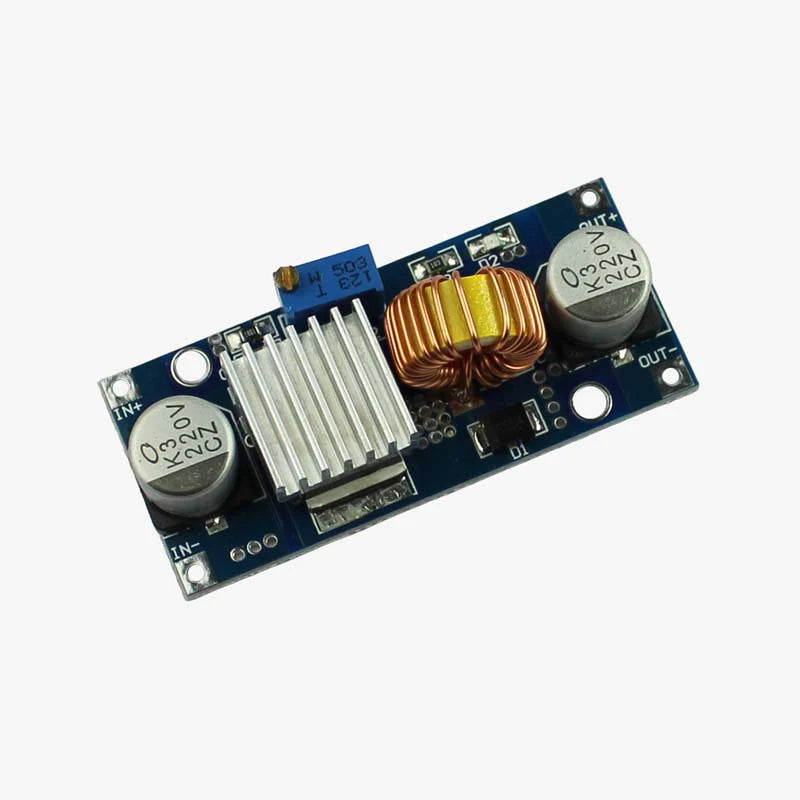

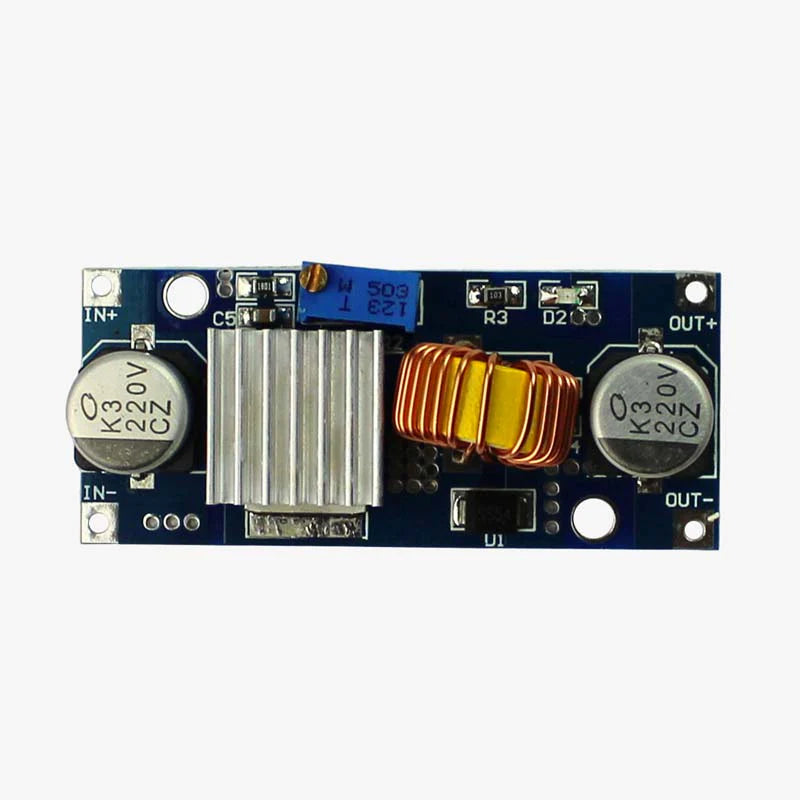

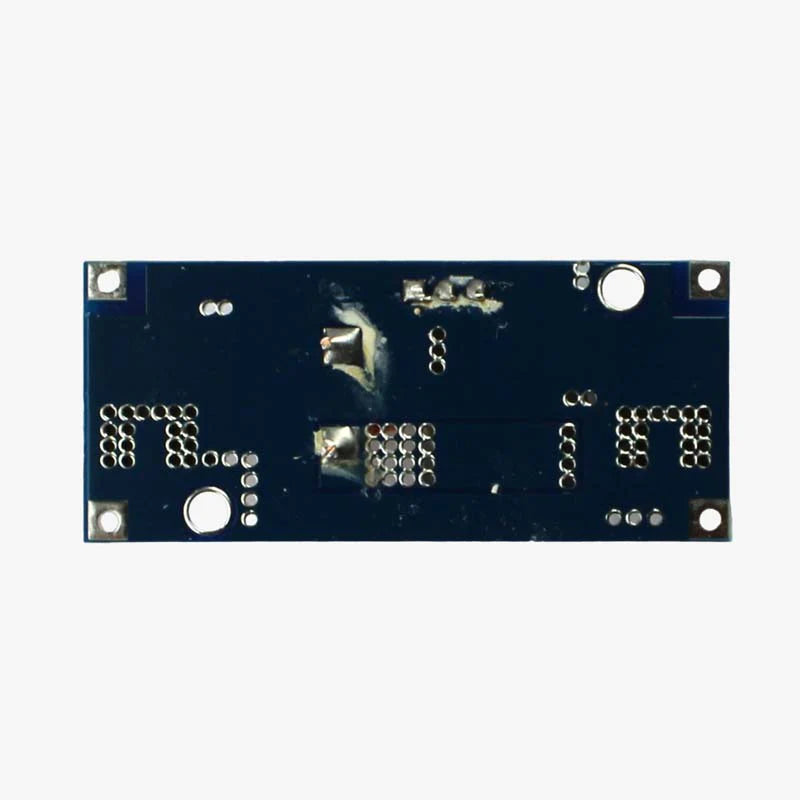

XL4015 5A Adjustable Step Down Power Supply Buck Module

The XL4015 Power supply module is based on the XL4015 Dc-Dc converter IC. The module can step-down and regulate a voltage from 1.25V to 36V based on the position of the potentiometer. The maximum output current can go as high as 5A making it suitable to power heavy loads like CNC machines, Robotic Arms or even to charge batteries.

Product Description of the XL4015 5A Adjustable Power Module

The XL4015 5A is a 180 kHz fixed frequency step-down (buck) DC/DC converter that can drive a 5A load, with low ripple, high efficiency and excellent line and load regulation.

Specifications of XL4015 5A Adjustable Power Module

• Wide 4 – 38V Input Voltage
• Adjustable Output Voltage of 1.25 to 36V
• 5A constant output current capabilities
• Fixed 180KHz switching frequency
• High efficiency of up to 96%
• Built-in thermal shutdown regulation
• Built-in current limit function
• Built-in output short protection function
• Dimensions : 54*23*18mm (L/W/H)

 Package Includes

1 x XL4015 5A Adjustable Power Module (Step-down)
