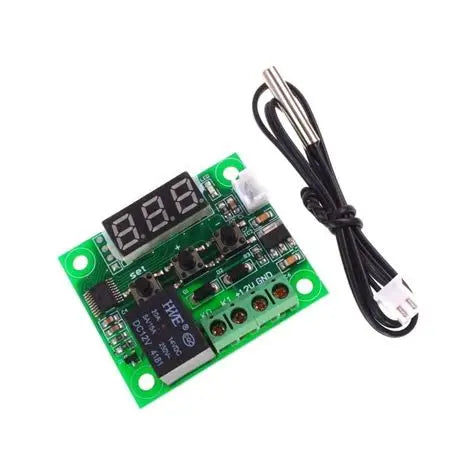

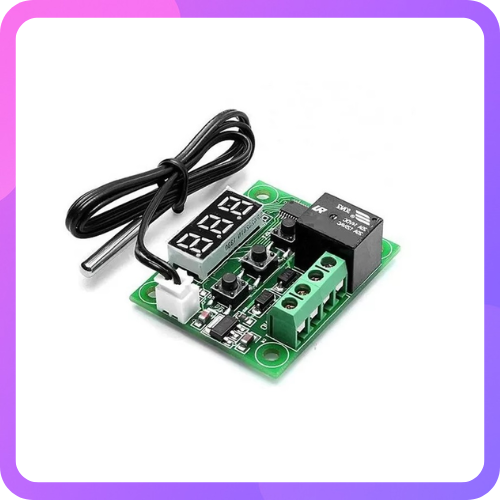

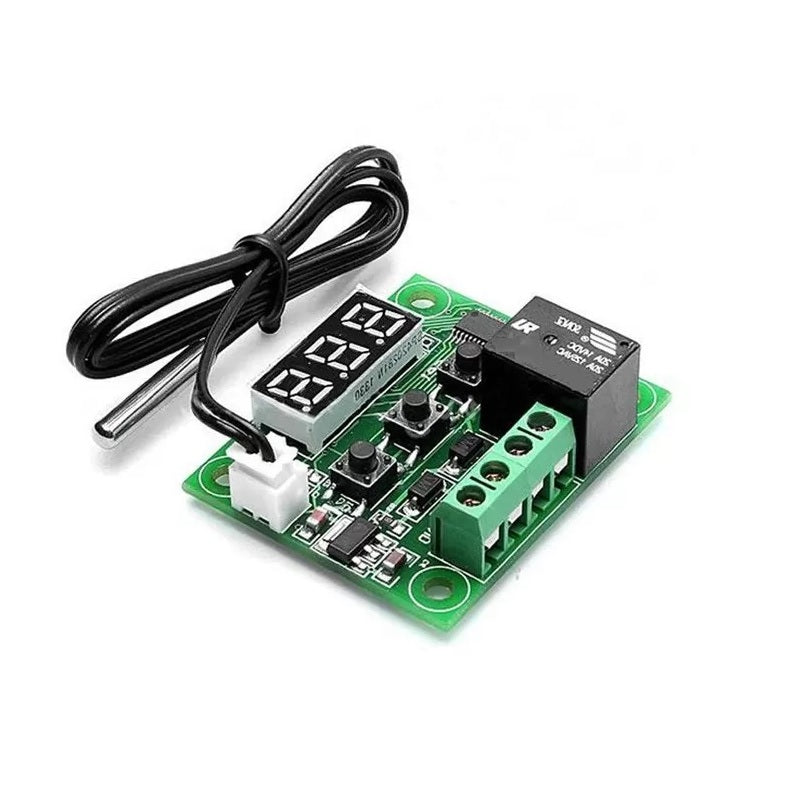

XH W1209 12V Digital Temperature Controller Module W/ Display and NTC Temp Sensor

This is XH W1209 12V Digital Temperature Controller Module W/ Display and NTC Temp Sensor.

W1209 Mini thermostat Temperature controller is low-cost 12V Temperature controller with 7-segment display and 3 switch keypad for setting temperature and other parameters. The module features an NTC thermistor temperature sensing and has an accuracy of 0.1 C.

The XH W1209 digital temperature controller Module W/ Display and NTC Waterproof Temperature Sensor is an incredibly low cost yet highly functional thermostat controller. With this module, you can intelligently control power to most types of electrical devices based on the temperature sensed by the included high accuracy NTC temperature sensor.

We can display the current temperature in degrees Centigrade via its 3 digits seven-segment display and the current relay state by an onboard LED.

Displaying the current temperature

The thermostat will display the current temperature in °C by default. When in any other mode making no input for approximately 5 seconds will cause the thermostat to return to this default display.
