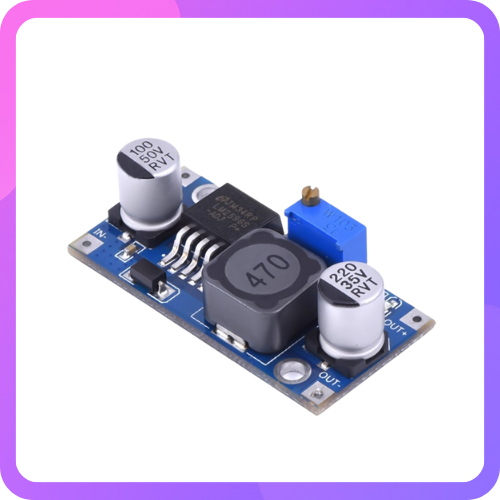

LM2596 DC-DC Buck Converter Adjustable Step Down Power Supply Module

1. Input voltage: 3-40V
2. Output voltage: 1.5-35V(Adjustable)
3. Output current: Rated current is 2A, maximum 3A
4. Switching Frequency: 150KHz
5. Operating temperature:Industrial grade (-40 to +85 )
6. Conversion efficiency: 92%(highest)

DC-DC Buck Converter Step Down Module LM2596 Power Supply is a step-down(buck) switching regulator, capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version.

The LM2596 series operates at a switching frequency of 150kHz, thus allowing smaller sized filter components than what would be required with lower frequency switching regulators.

Features:

1. Input voltage:3-40V
2. Output voltage:1.5-35V(Adjustable)
3. Output current: Rated current is 2A, maximum 3A(Additional heatsink is required)
4. Module Properties: non-isolated constant voltage module
5. Rectification: non-synchronous rectification
6. Short circuit protection: current limiting, since the recovery
