VL53L0X TOF Based LIDAR Laser Distance Sensor

VL53L0X ToF Distance Laser Lidar / Rangefinder Sensor Module

The VL53L0X ToF-based Distance Laser Lidar/Rangefinder is an excellent solution for obstacle detection in drones, robotics, and automation systems. Whether you are a beginner or an advanced developer, this compact distance sensor enables precise and reliable non-contact distance measurement.

The VL53L0X is a next-generation Time-of-Flight (ToF) laser-ranging module housed in one of the smallest packages available. Unlike conventional IR proximity sensors, it measures absolute distance by calculating the time taken for emitted laser light to reflect back from an object. It can measure distances up to 2 meters, regardless of target reflectance, setting a new benchmark in compact ranging performance.

The sensor integrates a high-performance SPAD (Single Photon Avalanche Diodes) array along with ST’s second-generation FlightSense™ technology. It uses a 940 nm Vertical-Cavity Surface-Emitting Laser (VCSEL) that is completely invisible and safe for human eyes. Internal infrared filters improve ambient light immunity and reduce optical crosstalk from protective glass covers, ensuring stable and accurate readings even in challenging lighting conditions.

This sensor gained significant popularity after being used for 3D imaging in the iPhone 7 and continues to influence modern mobile depth-sensing applications.

Where to Use the VL53L0X Sensor

The VL53L0X sensor is widely used in drones for obstacle avoidance, robotics for distance measurement and navigation, smart devices for gesture detection, and industrial automation for proximity sensing. It accurately detects objects even if their surfaces are highly reflective, making it more reliable than traditional IR sensors.

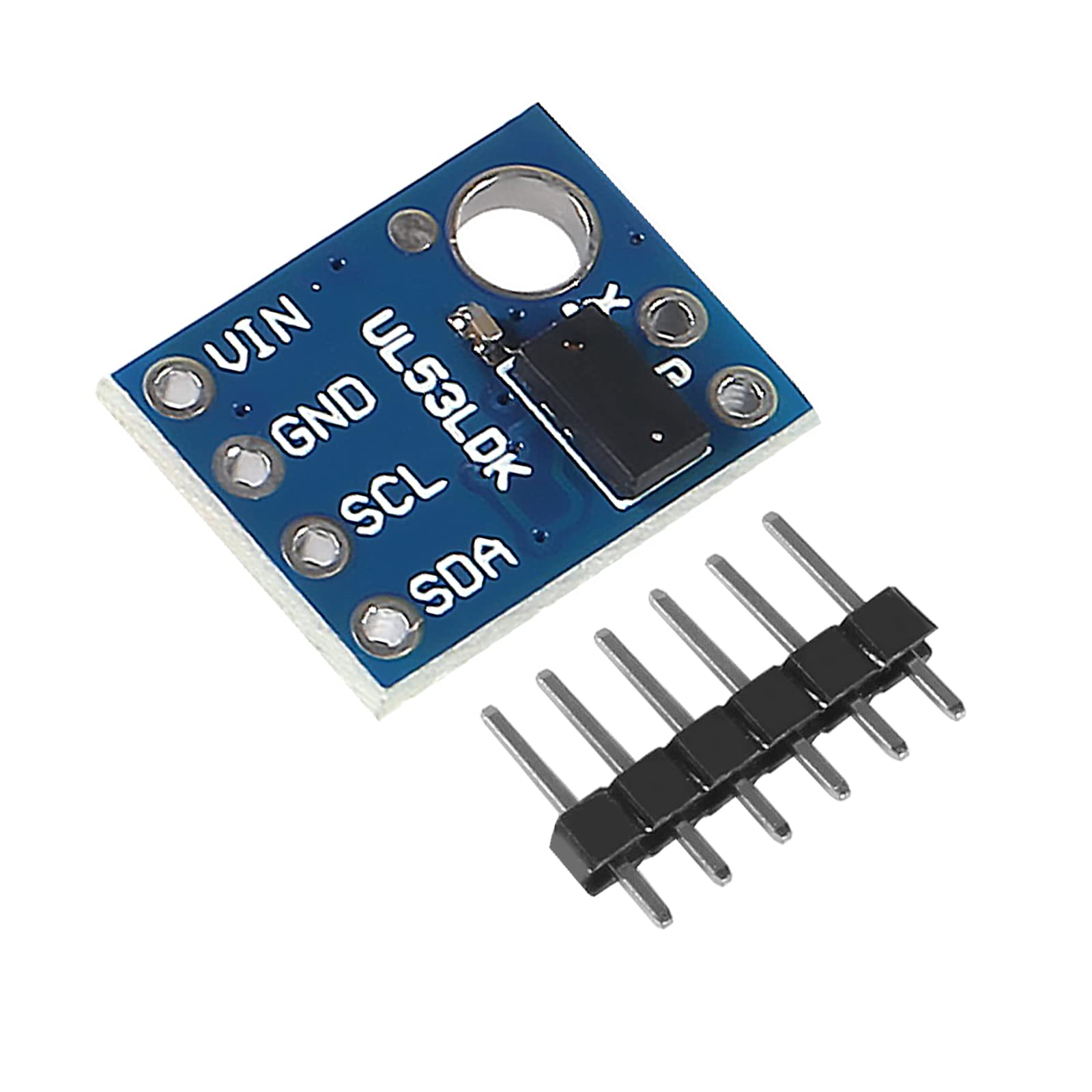

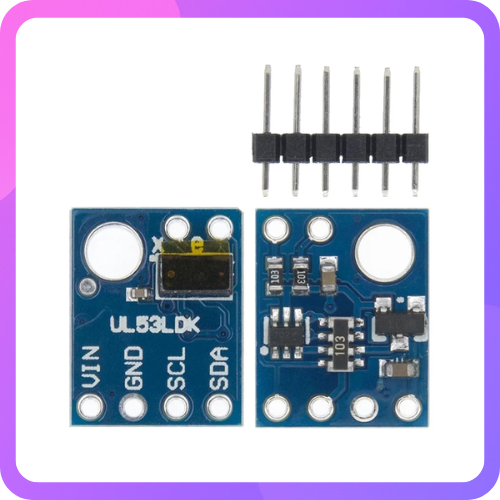

The module typically features four pins: VCC, GND, SCL, and SDA. It communicates via the I2C protocol, allowing simple integration with microcontrollers such as Arduino, Raspberry Pi, STM32, and others. The board includes a 2.8V linear regulator and an integrated level shifter, enabling it to operate safely with input voltages ranging from 2.6V to 5.5V.

Key Features

The sensor provides accurate Time-of-Flight distance measurement up to 2 meters. It uses a 940 nm invisible and eye-safe VCSEL laser. It integrates SPAD array technology for high-speed and precise photon detection. It offers strong immunity to ambient light and optical interference. The compact design makes it ideal for space-constrained applications. The I2C interface ensures easy communication with most development platforms.

The VL53L0X module is a powerful, compact, and efficient distance measurement solution suitable for drones, robotics, smart systems, and advanced embedded projects.
