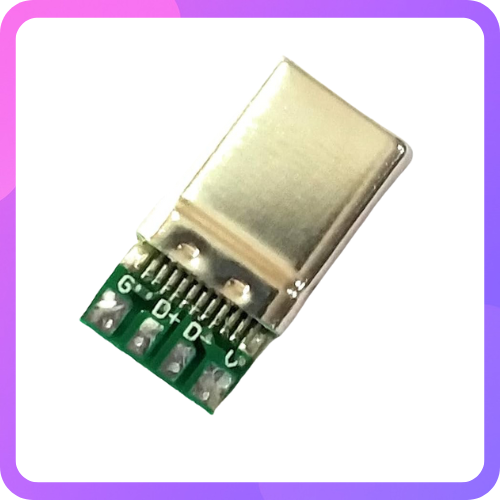

USB Type-C Male Plug Connector with PCB, USB-C Breakout

USB Type C PCB Male Breakout Board (4 Pin) - 7Semi

MUP-U34202-13 is a USB Type-C Male Plug Connector with PCB, designed as a USB-C Breakout by MUP. This breakout facilitates the seamless integration of a vertical USB-C connector into your projects, eliminating the requirement for soldering individual small SMD pads. The straight orientation of the USB-C connector provides added convenience for projects that don't have mounts.

The PCB board exposes the V+, GND, D+, and D- pins of the USB-C connector. The connector utilized is of the Straight Plug Type, featuring a Type C male with 24 pins.

The USB Type C PCB Male Breakout Board (4 Pin) - 7Semi is a practical solution for developers and hobbyists seeking easy access to USB Type-C functionality in their projects. It features a straight plug type USB-C male connector mounted on a compact PCB that breaks out four essential pins: V+, GND, D+, and D-. This design removes the complexity of soldering small surface-mount pads and provides a simple, reliable interface for powering devices or transferring data. Its vertical alignment and streamlined layout make it especially useful for setups without dedicated USB-C mounts.

Features

• Easy Integration: Enables quick prototyping with USB-C in DIY and embedded systems
• Simplified Design: Avoids the hassle of directly soldering to small USB-C SMD pads
• 4-Pin Breakout: Access to V+, GND, D+, and D- pins
• Straight Plug Type: Designed with a 24-pin USB-C male straight connector
• Compact PCB: Small footprint for space-constrained applications
