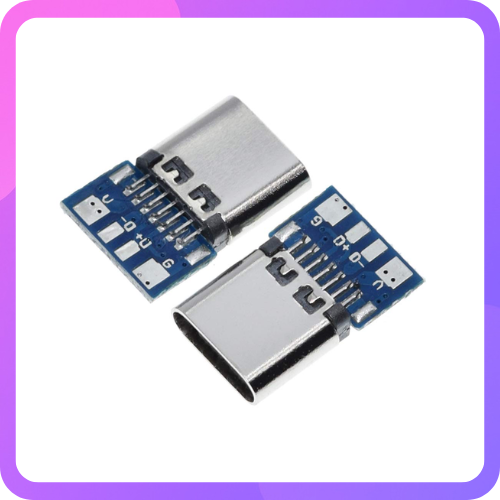

USB 3.1 Type C Connector 24 Pins Female Plug Socket Receptacle Adapter to Solder Wire & Cable 24P PCB Board Support Module

USB 3.1 Type C 24-Pin Female Connector

High-quality USB 3.1 Type C female connector designed for soldering to wire, cable, and PCB board applications. This 24-pin socket receptacle adapter provides reliable connectivity for your DIY electronics projects and custom USB-C implementations.

Specifications

• Rated Current: 3A
• Rated Voltage: 20V
• Contact Resistance Impedance: 40mΩ MAX
• Insulation Resistance Impedance: 100MΩ Min
• Withstand Voltage: AC 100V Min
• Operating Temperature: -30℃~85℃
• Durability: 10,000 cycles
• Terminal Block: Brass
• Gelatin: LCP
• Shell: Copper
• Insertion Force: 5-20N Max
• Pull Force: 6-20N Min
• Size: 14.6mm × 9.8mm

Module Interface

• V: Positive power supply
• D-: Data negative
• D+: Data positive
• G: Negative pole of power supply

Package Includes

1 x 24 Pins USB 3.1 Type C Female Connector
