Ultrasonic Humidifier Module — Micro Mist Maker Board

USB/5V ultrasonic humidifier module — compact mist maker for DIY projects and small humidifiers.

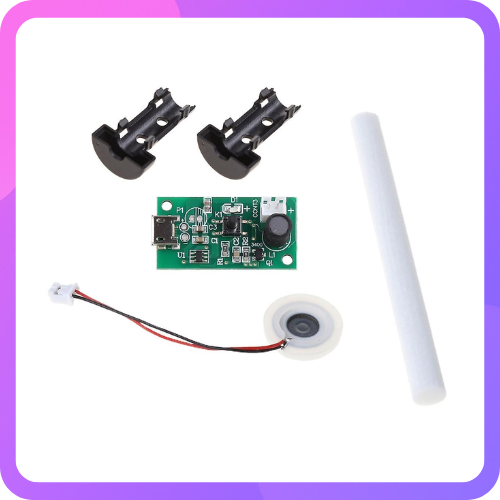

DC5V USB Humidifier Spray Module – 108KHz 20mm with Driver for DIY Projects

The DC5V Humidifier USB Spray Module is a compact and efficient solution for projects requiring controlled humidity, such as incubation experiments, plant growth chambers, or custom DIY humidifiers. Operating at a high frequency of 108KHz, this module produces fine mist particles with a diameter of just 5µm, ensuring effective and uniform humidification.

Powered via a Type-C interface (DC 4.5–5V), it integrates easily with various electronic setups, including USB power banks and adapters. With a spray speed of 50ml/h and a micron-level aperture with 740 holes, this module guarantees consistent mist output. Its overheat protection feature ensures safe, long-term operation, making it perfect for both continuous and battery-powered applications.

Key Features:

• High-Frequency Oscillation: 108KHz frequency for ultra-fine mist output.

• Driver Included: Ready-to-use module with integrated driver board.

• Plug-and-Play Operation: Starts automatically upon power-on.

• Micron-Level Aperture: 740 spray holes for smooth atomization.

• Compact Design: Easy to integrate into DIY projects or portable devices.

• Low Power Consumption: Consumes only 2W, suitable for long-duration use.

• Safety Features: Built-in overheat protection for reliable performance.

Specifications:

• Product Name: 108KHz 20mm USB Humidifier Module

• Working Voltage: DC 4.5V – 5V

• Power: 2W

• Spray Speed: 50ml/h

• Spray Hole Count: 740

• Spray Diameter: 5µm

• Operating Temperature: 0°C to 85°C

• Humidity Range: 10% – 90% RH

• Interface: USB Type-C

• Driver Size: 35 x 19 x 15 mm
