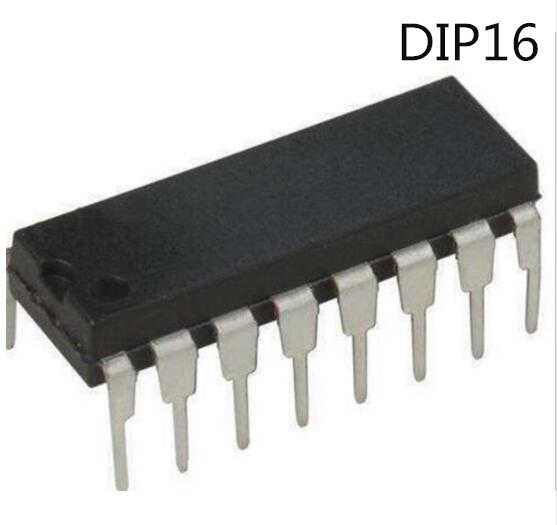

ULN2003L DIP16 IC UTC

The ULN2003 is a popular Darlington IC, it has seven Darlington pairs inside each pair with 1 input and 1 output pin. Thus having 7 input and 7 output pins. Each pair is rated for 50V and 500mA and the input pins can be triggered by +5V.

The ULN2003 IC is commonly used to drive large loads with microcontrollers. Like Driving a High-Power LED array or Driving a motor in both directions or controlling a Stepper motor etc.

The ULN2003 have series input resistors selected for operation directly with 5V TTL or CMOS.  These devices will handle numerous interface needs — particularly those beyond the capabilities of standard logic buffers. It is ideally suited for interfacing between low-level logic circuitry and multiple peripheral power loads, Typical loads include relays, solenoids, stepping motors, magnetic print hammers, multiplexed LED and incandescent displays, and heaters.  All devices feature open-collector outputs with integral clamp diodes.
