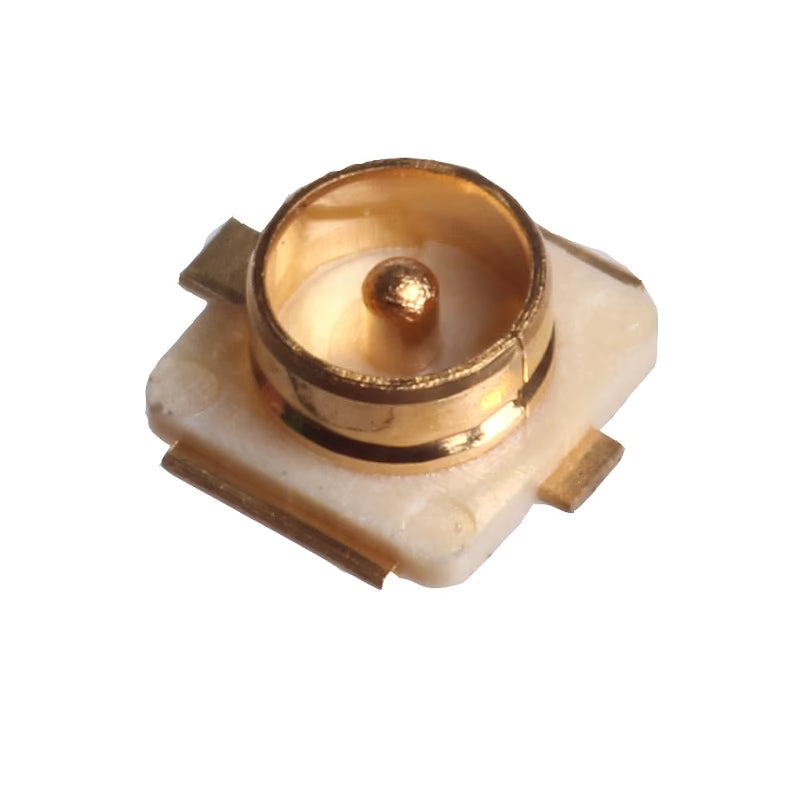

Ufl/ Ipex/ Mhf1 Rf Connector

This UFL/ IPEX/ MHF1 RF connector connects an Antenna to a communication device. It's also called an IPEX connector. This is male type UFL connector with SMT mounting and a female-type MHF1 connector. It is generally used in antenna connection for Wifi, GSM, GPS, etc. modules.

Features:

1. High quality.
2. Low cost.
3. Interconnects.

Specifications:

1. Frequency (MHz): 0 – 6.0 GHz
2. Working Voltage (V): 200 V
3. Insulation Resistance: >500 MOhm
4. Contact Resistance: 10mA Max
5. VSWR: < 1.4
6. Body, Metal Parts: Brass with Gold Plated
7. Centre Contact: Phosphor Bronze with Gold Plated
8. Insulators: PTFE
9. Dimensions (L X H X W) : 2.5 X 2.5 X 1.9 mm

Package Includes:

1 x UFL/ IPEX/ MHF1 RF Connector
