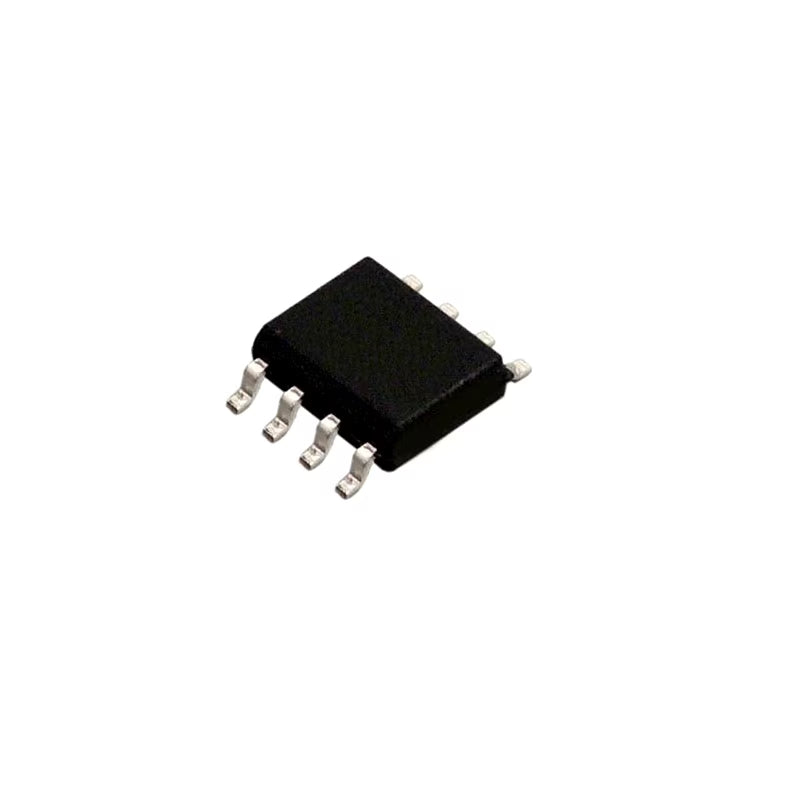

TP4056 SOP-8 SMD Package

The TP4056 SMD IC is a highly efficient and compact lithium-ion battery charger integrated circuit designed for single-cell batteries. It offers a simple and reliable solution for charging lithium-ion (Li-ion) or lithium-polymer (LiPo) batteries, providing a constant current/constant voltage charging profile. The IC is capable of charging a battery with an input voltage range of 4.5V to 5.5V, and features a fully integrated linear charger with automatic charge termination and a status output for monitoring the charging progress. The TP4056 is designed to provide high efficiency and low heat dissipation during the charging process.

VOLTROS.IN

Features:

1. Constant Current / Constant Voltage (CC/CV) Charging: Provides a reliable charging profile for lithium-ion (Li-ion) and lithium-polymer (LiPo) batteries.
2. Wide Input Voltage Range: Operates with an input voltage range of 4.5V to 5.5V, making it compatible with standard USB power sources.
3. Automatic Charge Termination: The IC automatically terminates charging when the battery reaches full charge, ensuring safe operation.
4. Status Output Pin: Includes a status output that indicates the charging progress and whether the battery is fully charged or charging.

Package Includes:

1 x TP4056 SOP-8 SMD Package
