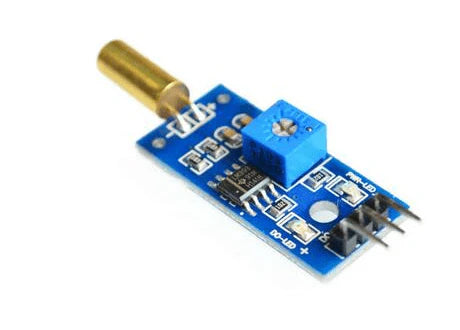

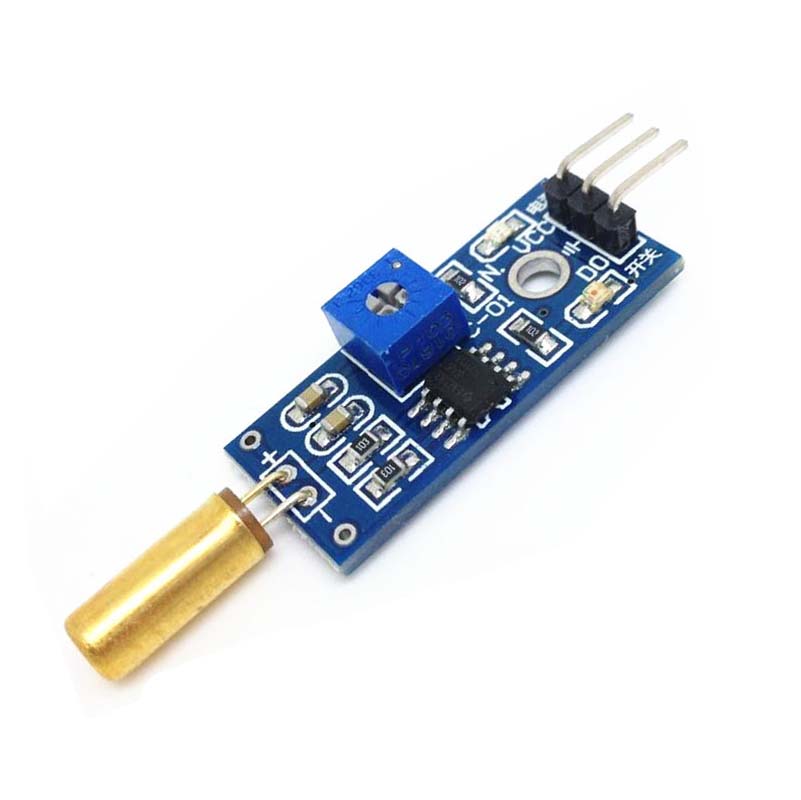

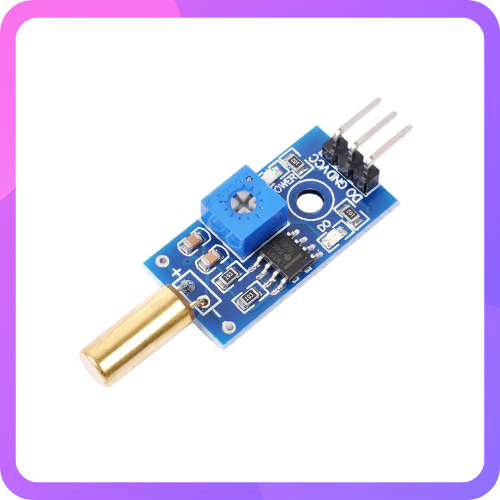

Tilt Sensor Module

The Tilt Sensor Module for Arduino comes with the basic components for operation. Supplying power and it is good to be used. Attach the inclinometer sensor
to an object and it will detect whether the object is tilted. Simple usage as it is the digital output, so you will know whether the object is tilted or not by reading the output. It uses SW-460D or SW-520D tilt sensor. The Tilt Sensor is the ball rolling type, NOT Mercury type.

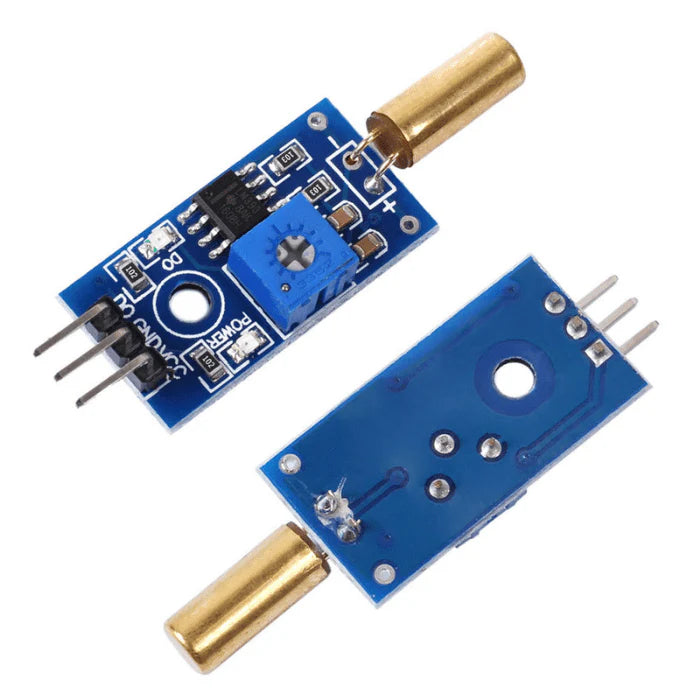

The tilt sensor Comes with an M3 mounting hole for ease of attaching it to an object. Onboard, it provides a tilt switch, high sensitivity and commonly being used for tilt detection. The module comes with a power LED and a status LED for the visual indicator.

Module instructions:

• The switch output of the module depends on the on and off of the angle switch. When the angle switch is off, the DO output is high, and when the angle switch is turned on, the DO output is low.
• The output terminal can be directly connected to the single-chip microcomputer, and the high-low level is detected by the single-chip microcomputer, thereby detecting the angle change.
• The output terminal can directly drive the relay module, which can form a high-power angle switch to protect the automatic power-off function when the products such as electrical equipment are dumped.
