TDA2050 - 32W Hi-Fi Audio Amplifier IC - 5 Pin

TDA2050 - 32W Hi-Fi Audio Amplifier IC - 5 Pin

Rs. 26.00
Rs. 26.00
Sale Sold out
Shipping calculated at checkout.

50 in stock

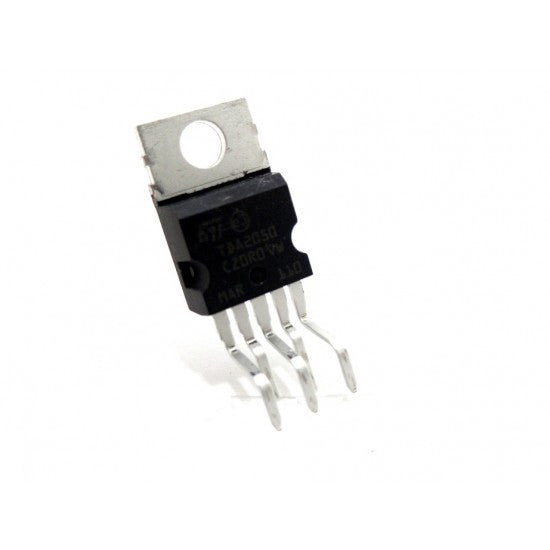

TDA2050 - 32W Hi-Fi Audio Amplifier IC

The TDA 2050 is a monolithic integrated circuit in a Pentawatt package, intended for use as an audio class-AB audio amplifier.

Thanks to its high power capability the TDA2050 is able to provide up to 35 W true RMS power into a 4 ohm load at THD = 0%, VS = ±18 V, f = 1 kHz and up to 32 W into an 8 ohm load at THD = 10%, VS = ±22 V, f = 1 kHz.





Features

  • High output power (50 W music power IEC 268.3 rules)
  • High operating supply voltage (50 V)
  • Single or split supply operations
  • Very low distortion
  • Short-circuit protection (OUT to GND)
  • Thermal shutdown
