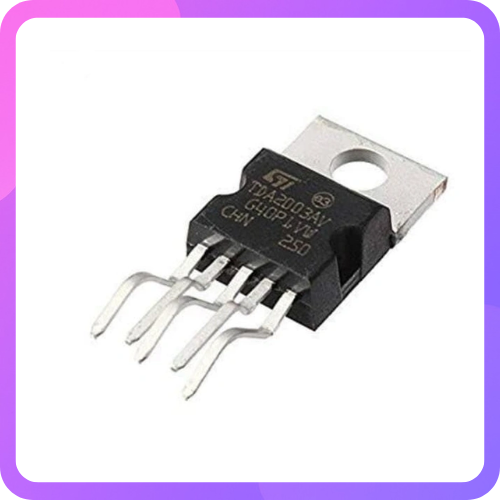

TDA2003 10W Audio Amplifier IC

TDA2003 10W Audio Amplifier IC

VT01647

Rs. 25.00
Rs. 25.00
Sale Sold out
Shipping calculated at checkout.

295 in stock

The TDA2003 is an Audio Amplifier IC  with a maximum output power of 10W commonly used in stereo amplification in car Radio. The IC can output a maximum current of 3.5A and features very low harmonic and crossover distortion.

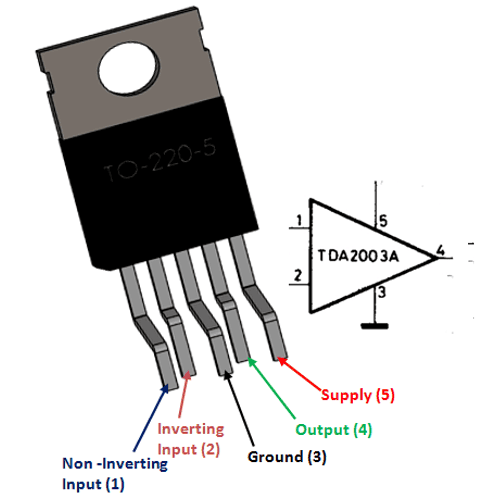

Pin Description

Pin Number

Pin Name

Description

1

Non – Inverting Input

Non inverting end (+) of Amplifier

2

Inverting Input

Inverting end (-) of Amplifier

3

Ground

Connect to the ground of the circuit

4

Output

This pin outputs the amplified signal

5

Supply Voltage

Supply voltage, Minimum 6V and Maximum 36V



Features

  • Low-frequency class AB amplifier most suited for audio amplification
  • Can provide up to 20 Watts as output power
  • Operating Voltage: 8V to 18V
  • Maximum output power 12V (at 1.6Ω RL)
  • Voltage Gain: 80dB
  • Supply Voltage rejection: 36dB
  • Short circuit and thermal protection is available
  • Breadboard friendly
  • Available in 5-pin TO220 package
