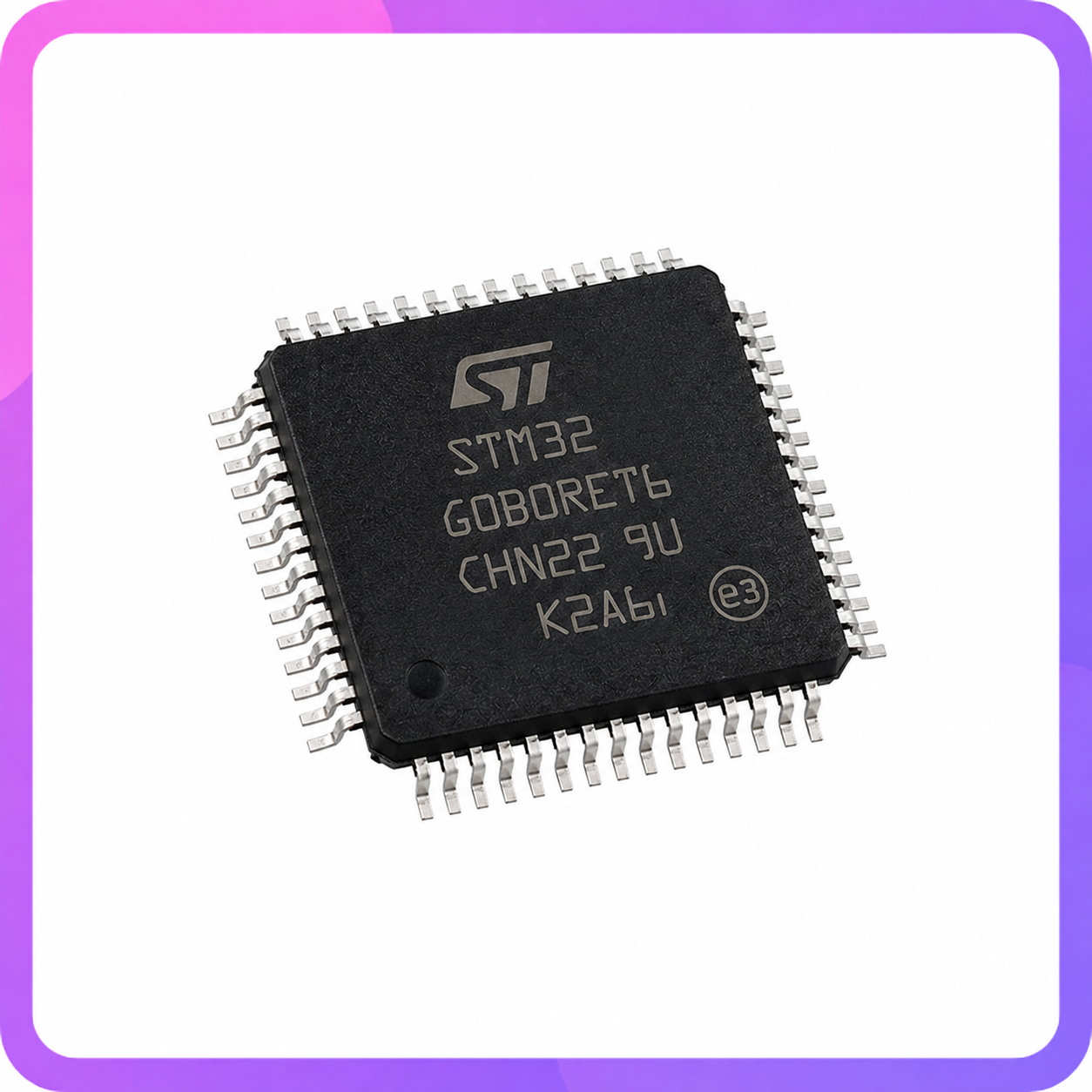

STM32G0B0RET6 ARM Cortex-M0+ 32-bit Microcontroller LQFP64
STM32G0B0RET6 ARM Cortex-M0+ 32-bit Microcontroller LQFP64
SKU:VT001684
Regular price
Rs. 400.00
Regular price
Sale price
Rs. 400.00
Shipping calculated at checkout.
Share
Quantity
100 in stock
Couldn't load pickup availability
Product Overview
The STM32G0B0RET6 is a high-performance, ultra-low-power 32-bit microcontroller from STMicroelectronics, based on the Arm® Cortex®-M0+ core running at up to 64 MHz. It integrates 512 KB Flash memory, 144 KB SRAM, advanced analog peripherals, communication interfaces, timers, DMA, and security features, making it ideal for industrial, consumer, IoT, and embedded applications.
Key Features
- ARM® Cortex®-M0+ 32-bit Core
- CPU Frequency up to 64 MHz
- 512 KB Flash Memory
- 144 KB SRAM
- Operating Voltage: 1.7 V to 3.6 V
- 12-bit ADC (Up to 2.5 MSPS)
- Multiple 16-bit and 32-bit Timers
- USART / UART Interfaces
- SPI Interface
- I²C Interface
- USB Type-C & Power Delivery Support
- CAN FD Controller
- CRC Calculation Unit
- DMA Controller
- RTC (Real Time Clock)
- Watchdog Timers (IWDG & WWDG)
- Low Power Modes
- Hardware Security Features
- Wide Operating Temperature: -40°C to +85°C
- RoHS Compliant
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | STMicroelectronics |
| Part Number | STM32G0B0RET6 |
| Product Type | 32-bit Microcontroller (MCU) |
| Core | ARM Cortex-M0+ |
| Maximum Frequency | 64 MHz |
| Flash Memory | 512 KB |
| SRAM | 144 KB |
| EEPROM | Emulated in Flash |
| Supply Voltage | 1.7 V – 3.6 V |
| ADC | 12-bit |
| DAC | Not Available |
| Timers | 16-bit & 32-bit |
| USB | USB Type-C / Power Delivery |
| CAN | CAN FD |
| Communication | USART, UART, SPI, I²C |
| Package | LQFP-64 |
| Mounting Type | Surface Mount (SMT) |
| Operating Temperature | -40°C to +85°C |
| RoHS | Yes |
Package Information
| Parameter | Value |
|---|---|
| Package Type | LQFP-64 |
| Package Size | 10 × 10 mm |
| Pin Count | 64 Pins |
| Mounting | Surface Mount |
| Moisture Sensitivity | MSL 3 |
| Packaging | Tray / Tape & Reel |
Applications
- Industrial Automation
- IoT Devices
- Smart Home Products
- Home Appliances
- Medical Equipment
- Battery Management Systems
- Smart Energy Meters
- Consumer Electronics
- Motor Control
- Embedded Control Systems
- Data Loggers
- Robotics
Why Choose STM32G0B0RET6?
- Ultra-low power operation
- High-performance 64 MHz ARM Cortex-M0+ CPU
- Large 512 KB Flash and 144 KB SRAM
- Rich communication interfaces
- Integrated CAN FD and USB Type-C support
- Excellent price-to-performance ratio
- Industrial-grade reliability
- Long-term availability from STMicroelectronics
