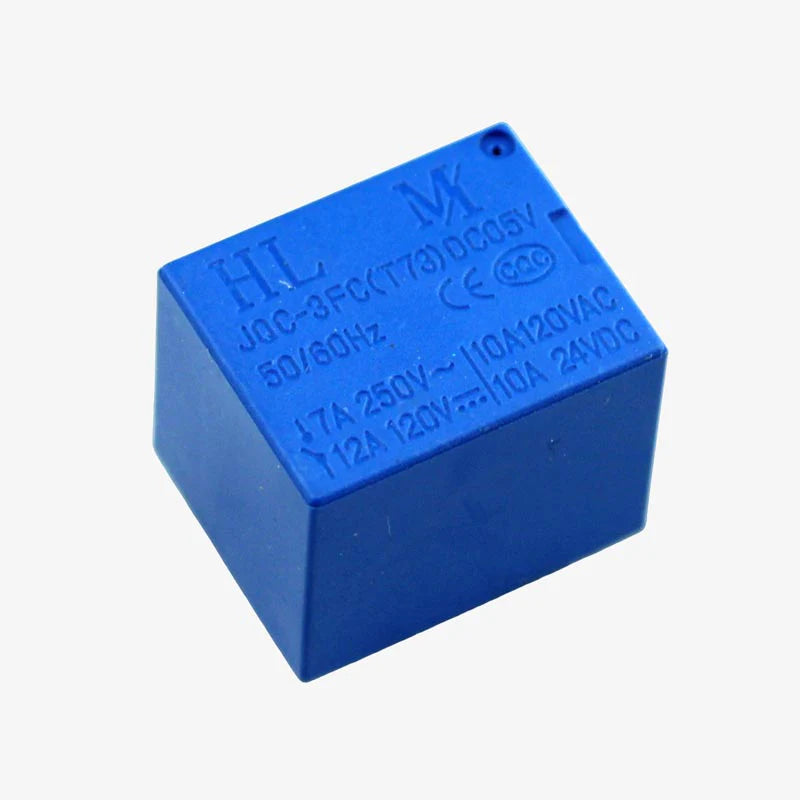

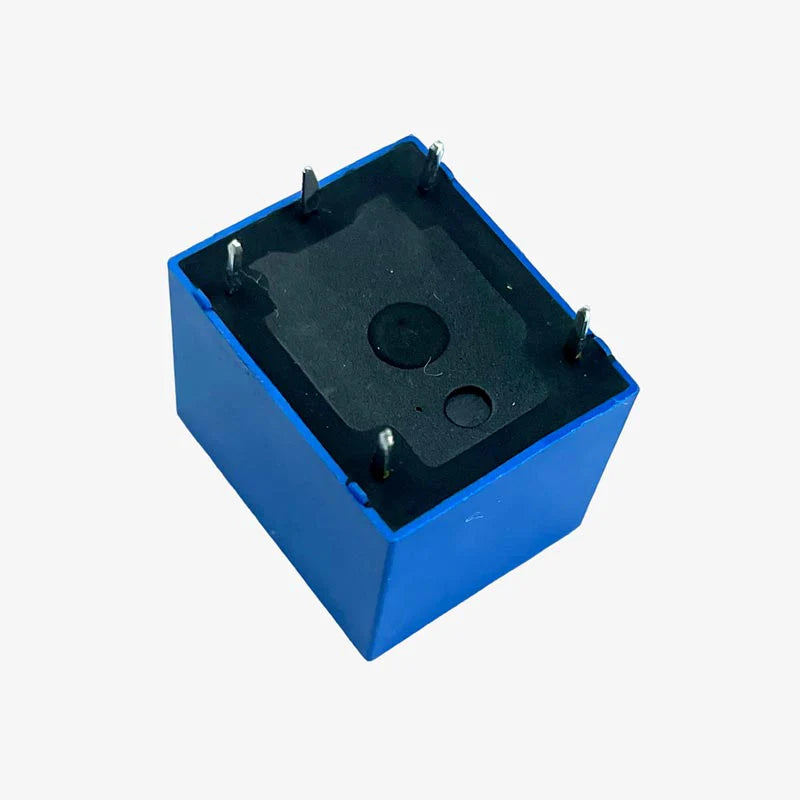

SPDT 5V PCB Mount Relay - Sugar cube 5 pin (5v 7qmp relay)

This is the 5V relay most commonly used as switching device in electronic circuits. It is mainly used in Commonly switching circuits, For Home Automation projects to switch AC loads, To Control (On/Off) Heavy loads at a pre-determined time/condition, Used in safety circuits to disconnect the load from supply in event of failure, Used in Automobiles electronics for controlling indicators glass motors.

Specifications of 5V Relay

• Trigger Voltage (Voltage across coil) : 5V DC
• Trigger Current (Nominal current) : 70mA
• Maximum AC load current: 7A @ 250/125V AC
• Maximum DC load current: 10A @ 30/28V DC
• Compact 5-pin configuration with plastic moulding
• Operating time: 10msec Release time: 5msec
• Maximum switching: 300 operating/minute (mechanically)
