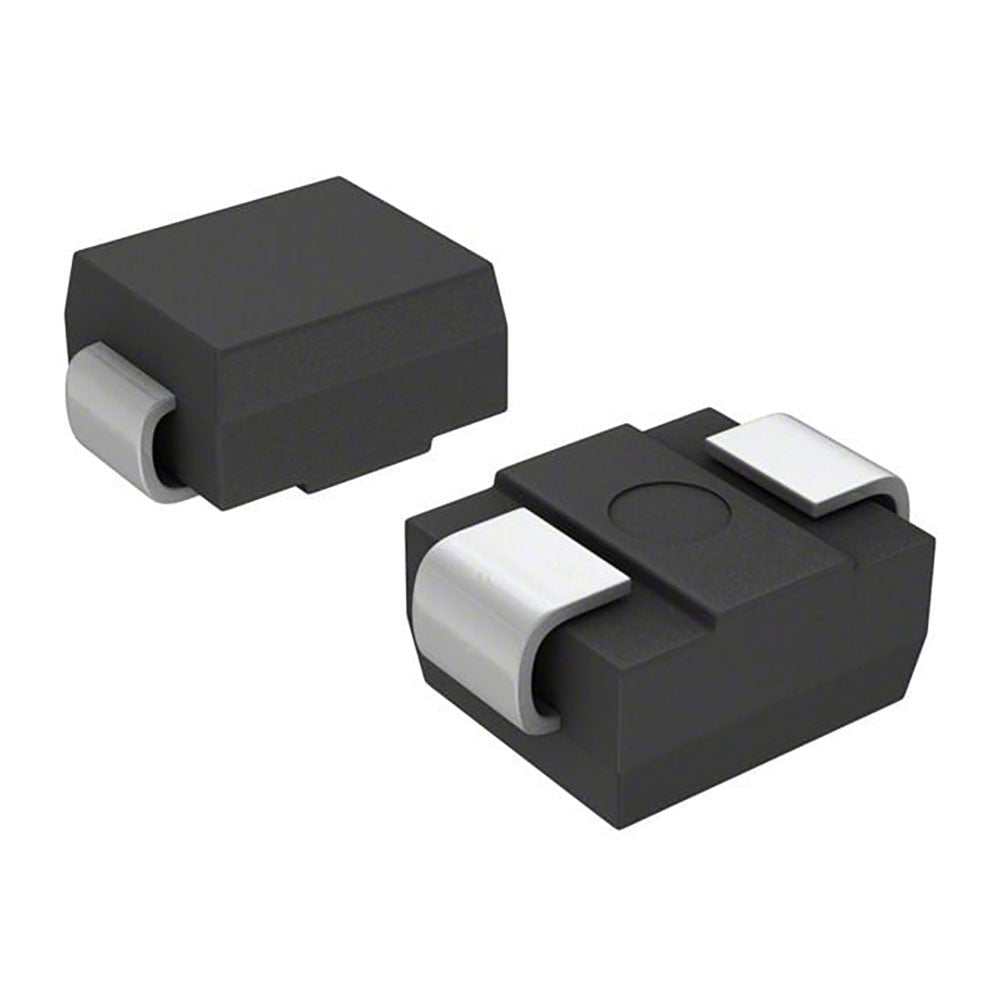

SMBJ12CA-E3/52 - TVS Diode 19.9V 600W Bidirectional Surface Mount SMB-2
SMBJ12CA-E3/52 - TVS Diode 19.9V 600W Bidirectional Surface Mount SMB-2
SKU:
Regular price
Rs. 10.00
Regular price
Sale price
Rs. 10.00
Shipping calculated at checkout.
Share
Quantity
2250 in stock
Couldn't load pickup availability
Technical Specifications
Brand:
Vishay Semiconductors
Case/Package:
SMB
Contact Plating:
Tin
Mount:
Surface Mount
Number Of Pins:
2
Number of Terminals:
2
Weight:
96 mg
Breakdown Voltage:
14 V
Clamping Voltage:
19.9 V
Direction:
Bidirectional
Element Configuration:
Single
ESD Protection:
No
Leakage Current:
5 uA
Max Breakdown Voltage:
14.7 V
Max Junction Temperature (Tj):
150 C
Max Operating Temperature:
150 C
Max Power Dissipation:
5 W
Max Reverse Leakage Current:
5 uA
Max Surge Current:
30.2 A
Min Breakdown Voltage:
13.3 V
Min Operating Temperature:
-55 C
Number of Channels:
1
Number of Elements:
1
Operating Supply Voltage:
12 V
Peak Pulse Current:
30.2 A
Peak Pulse Power:
600 W
Peak Reverse Current:
5 uA
Polarity:
Bidirectional
Power Dissipation:
600 W
Power Rating:
600 W
Reverse Breakdown Voltage:
13.3 V
Reverse Standoff Voltage:
12 V
Termination:
SMD/SMT
Test Current:
1 mA
Voltage Rating (DC):
12 V
Height:
2.44 mm
Length:
4.5466 mm
Width:
3.937 mm
