Technical Specifications
Brand:
JD

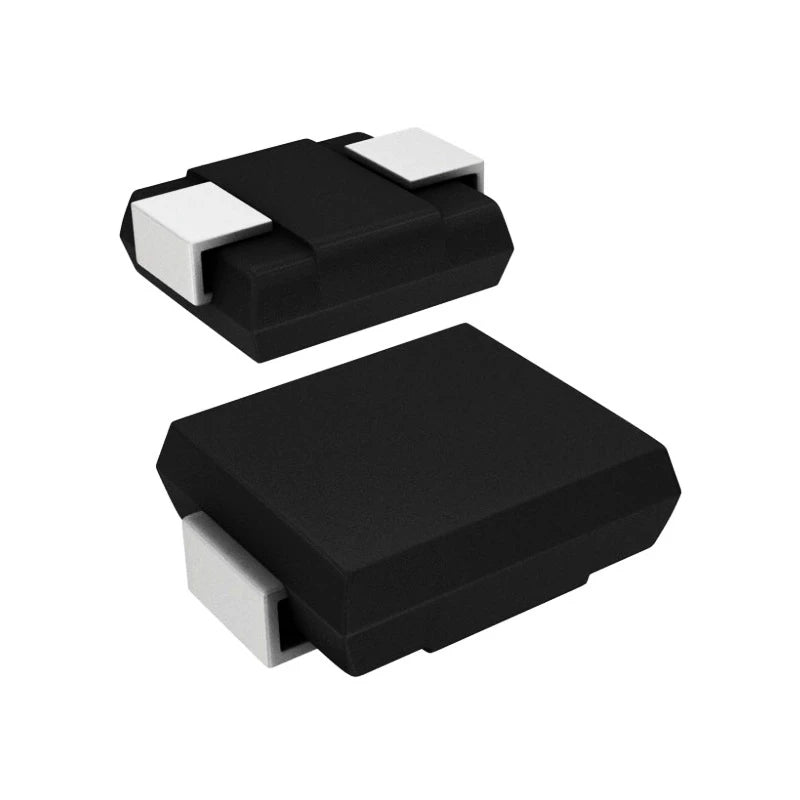

Case/Package:
SMA
Mount:
Surface Mount
Number of Pins:
2
Breakdown Voltage:
6.4 V
Clamping Voltage:
9.2 V
Composition:
Zener
Direction:
Unidirectional
Element Configuration:
Single
Leakage Current:
800 uA
Max Breakdown Voltage:
7 V
Max Junction Temperature (Tj):
150 C
Max Operating Temperature:
150 C
Max Power Dissipation:
3.3 W
Max Reverse Leakage Current:
800 uA
Max Surge Current:
43.5 A
Min Breakdown Voltage:
6.4 V
Min Operating Temperature:
-65 C
Number of Channels:
1
Operating Supply Voltage:
5 V
Peak Pulse Current:
43.5 A
Peak Pulse Power:
400 W
Polarity:
Unidirectional
Power Dissipation:
400 W
Reverse Standoff Voltage:
5 V
Termination:
SMD/SMT
Voltage Rating (DC):
5 V
