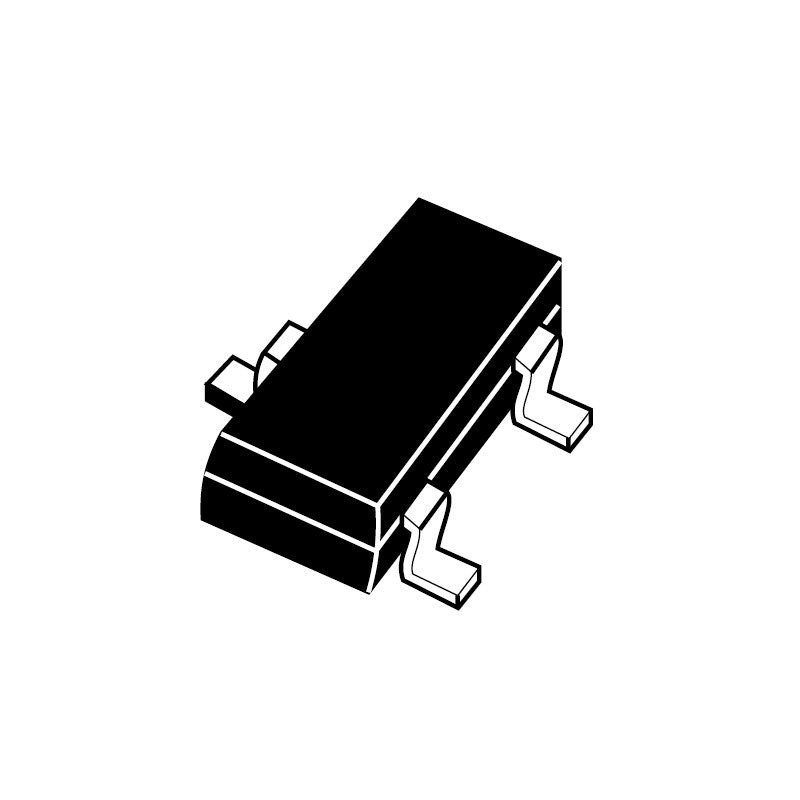

SM712-02HTG - SM712 Series 600W 2-Ch Asymmetrical TVS Diode Array Bipolar ESD Protection 3-Pin SOT23
SM712-02HTG - SM712 Series 600W 2-Ch Asymmetrical TVS Diode Array Bipolar ESD Protection 3-Pin SOT23
SKU:
Regular price
Rs. 10.00
Regular price
Sale price
Rs. 10.00
Shipping calculated at checkout.
Share
Quantity
2500 in stock
Couldn't load pickup availability
Technical Specifications
Brand:
Littelfuse, Inc
Case/Package:
SOT-23
Mount:
Surface Mount
Number of Pins:
3
Breakdown Voltage:
13.3 V
Capacitance:
75 pF
Clamping Voltage:
31 V
Composition:
Zener
Direction:
Bidirectional
Element Configuration:
Dual
Leakage Current:
20 uA
Max Operating Temperature:
125 C
Max Power Dissipation:
600 W
Max Surge Current:
19 A
Min Breakdown Voltage:
13.3 V
Min Operating Temperature:
-40 C
Number of Bidirectional Channels:
2
Operating Supply Voltage:
12 V
Peak Pulse Current:
19 A
Number of Channels:
2
Polarity:
Bidirectional
Peak Pulse Power:
600 W
Power Line Protection:
No
Working Voltage:
12 V
Reverse Standoff Voltage:
12 V
RoHS:
Compliant
