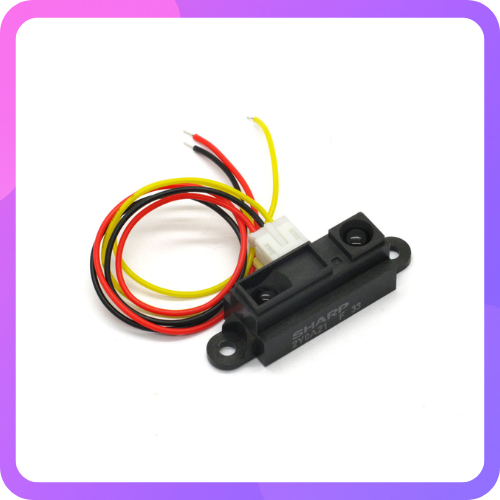

SHARP GP2Y0A710K0F 100–550cm Distance Sensor with Cable

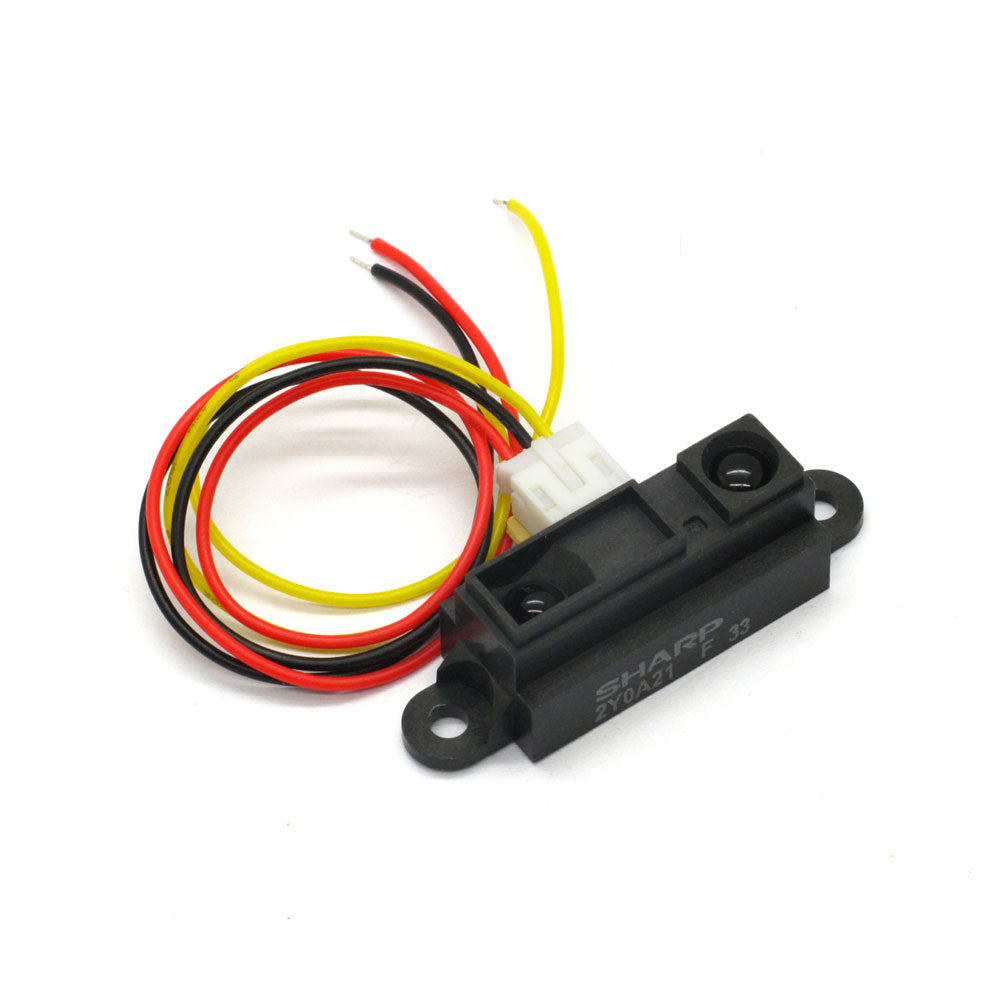

This is a Sharp Distance Measuring Sensor unit 10 to 80 cm – GP2Y0A21YK0F.

This SHARP distance sensor bounces IR off objects to determine how far away they are. It returns an analog voltage that can be used to determine how close the nearest object is. Comes with 12″ long 3-JST interface wire. These sensors are good for short-range detection. For over 1 m distance, we suggest using sonar sensors

To use, connect the black wire to ground, red wire to 5V and white wire to the analog input. The analog voltage out will range from 3V when an object is only 4″ (10 cm) away and 0.4V when the object is 32″ (80 cm) away.

Package Includes :

1 x Sharp Distance Measuring Sensor unit 10 to 80 cm.

1 x Connecting cable.
