RXEF185-2-LITTELFUSE-RXEF185-2-PPTC RESETTABLE FUSE, 1.85A, 72V, TH

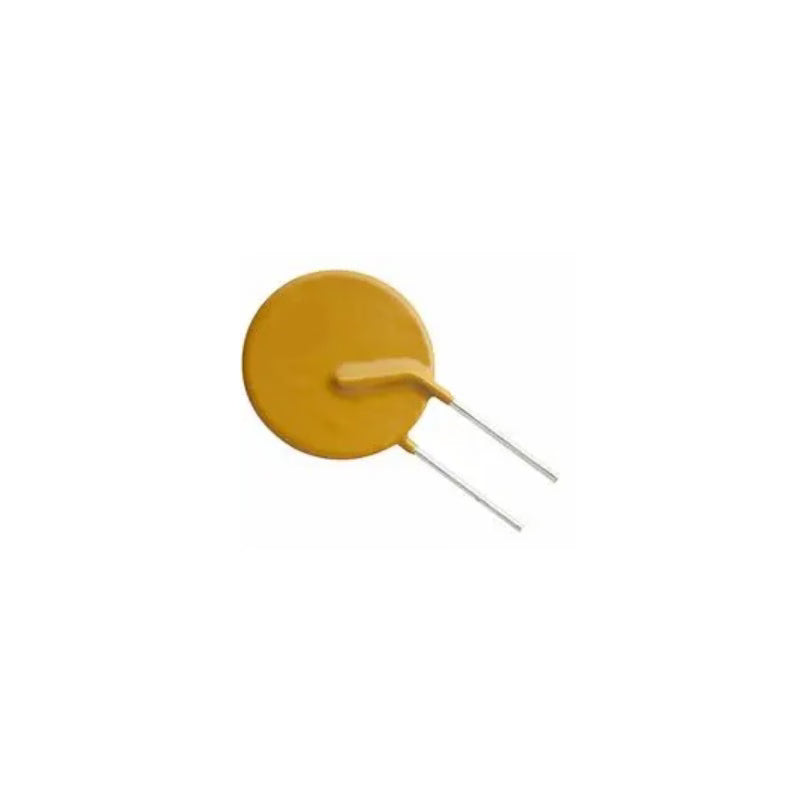

RXEF185-2-LITTELFUSE-RXEF185-2-PPTC RESETTABLE FUSE, 1.85A, 72V, TH Note: Image only for reference.

Specifications:

Length: - Product Range: PolySwitch RXEF Series hazardous: FALSE Tripping Current: 3.7A Operating Temperature Max: 85°C Diameter: 17.5mm Fuse Shape: Round Voltage Rating: 72VDC Lead Spacing: 5.8mm Operating Temperature Min: -40°C Automotive Qualification Standard: - Height: 22.4mm Thickness: 3mm Time to Trip: 12.6s Current Rating Max: 40A Holding Current: 1.85A

Package Includes:

1 x RXEF185-2-LITTELFUSE-RXEF185-2-PPTC RESETTABLE FUSE, 1.85A, 72V, TH
