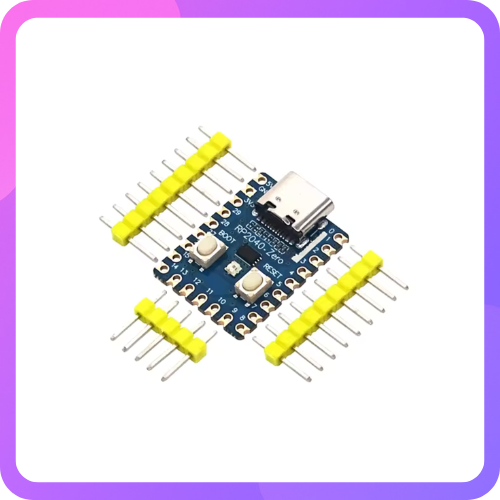

RP2040-Zero Mini Development Board with Pre-Soldered Headers - USB Type-C Raspberry Pi Pico Compatible

RP2040-Zero Mini Development Board with Pre-Soldered Headers - USB Type-C Raspberry Pi Pico Compatible

VT00631

Rs. 275.00
Rs. 275.00
Sale Sold out
Shipping calculated at checkout.

25 in stock


The RP2040-Zero is the ultimate "small-but-mighty" microcontroller. It takes the full feature set of the Raspberry Pi RP2040 silicon—including the dual-core processor and flexible PIO—and shrinks it down to a footprint barely larger than a postage stamp. This version comes with pre-soldered headers, so you can plug it straight into a breadboard or female headers without ever touching a soldering iron.

Specifications

Parameter Value
Microcontroller Dual-core ARM Cortex M0+ @ up to 133MHz
SRAM 264KB On-chip SRAM
Flash 2MB QSPI Flash
USB Interface USB Type-C (Power, Data & Programming)
Form Factor Ultra-compact (~23.5 × 18mm)
GPIO 29x Multi-function GPIO (20 via headers, 9 via pads)
Communication 2× SPI, 2× I2C, 2× UART
ADC 4× 12-bit ADC channels
PWM 16× Controllable PWM channels
PIO 8× Programmable I/O state machines
On-board LED WS2812 RGB LED (GPIO16)
Mounting Breadboard-friendly with pre-soldered headers

Features

  • RP2040 dual-core ARM Cortex M0+ processor
  • 264KB SRAM + 2MB Flash storage
  • USB 1.1 device and host support via USB-C
  • 29 multi-function GPIO pins
  • 4× 12-bit ADC, 16× PWM channels
  • 8× Programmable I/O (PIO) state machines for custom peripherals
  • Drag-and-drop programming over USB mass storage
  • Sleep and dormant modes for low-power operation
  • On-chip temperature sensor
  • Fully compatible with Raspberry Pi Pico accessories and code
  • Pre-soldered headers — plug-and-play ready

⚠️ Voltage Warning

The RP2040 is NOT 5V tolerant. All I/O pins operate at 3.3V only. When interfacing with 5V components (e.g., traditional ultrasonic sensors), use a logic level converter to protect the RP2040.

Key Applications

  • Wearable Tech: Small enough to be sewn into clothing or hidden in 3D-printed props
  • Custom Keyboards: Powerful controller for split mechanical keyboards or macro pads
  • Drone Flight Controllers: High clock speed and compact size ideal for mini-quad projects
  • USB Security Keys: Build 2FA or HID tools with modern Type-C connectivity
  • IoT, embedded projects, and educational STEM applications

RGB LED

Address GPIO16 using the NeoPixel library to control the onboard WS2812 RGB status indicator.

Helpful Resources

What's in the Box

  • 1× RP2040-Zero Board with Pre-Soldered Header Pins

Additionally Required

  • USB Type-C Data Cable
  • Breadboard for prototyping
