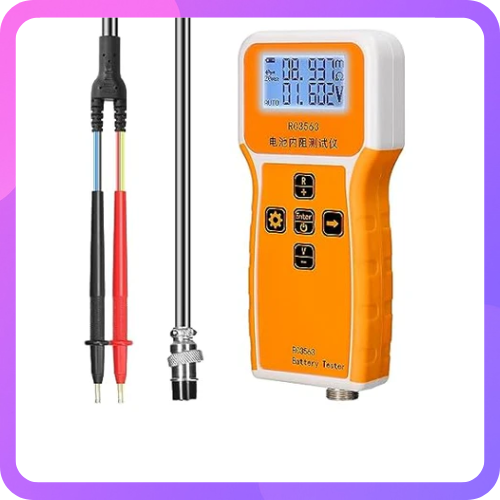

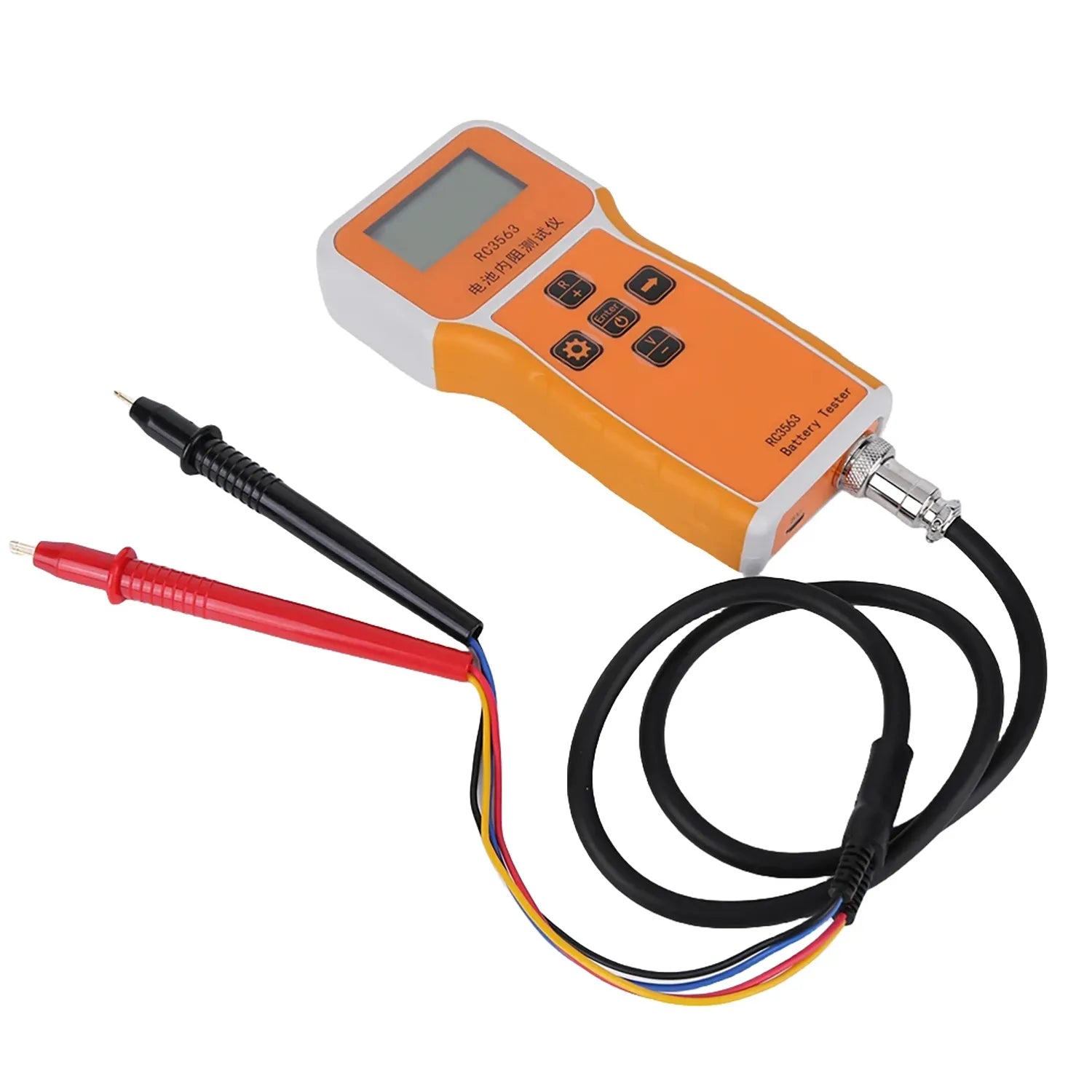

RC3563 Battery IR Tester Handheld Voltage & Resistance Measurement Tool

The RC3563 Battery IR Tester combines precision measurement with portability, making it ideal for field use as well as lab environments. By using a true four-wire Kelvin test method, it effectively eliminates errors caused by contact and lead resistance, ensuring accurate readings even at extremely low resistance levels.

Powered by a built-in 1000mAh rechargeable lithium battery, the tester supports 5V charging via standard Android chargers, offering excellent convenience. Advanced digital processing with a Kalman filter algorithm enhances stability and accuracy, while automatic and manual range selection simplifies operation. In addition to batteries, the RC3563 can also measure low-resistance capacitors and resistors, making it a versatile diagnostic tool.

Features:

1. True 4-wire testing for minimized contact resistance errors
2. Dual measurement capability: measures both AC resistance and DC voltage simultaneously.
3. High accuracy: 0.5% measurement precision for both resistance and voltage
4. Intelligent control with both automatic and manual range options
5. Versatile usage for batteries, capacitors, and high-precision resistors
6. Suitable for batteries, capacitors, and low-ohm resistors
7. Auto Power-Off: After 30 minutes of inactivity

Package Includes:

1 x RC3563 Battery IR Tester – Handheld Voltage & Resistance Measurement Tool

1 x Test Probe

1 x Alligator Clip

1 x Fixture for Battery Testing

1 x User Manual
