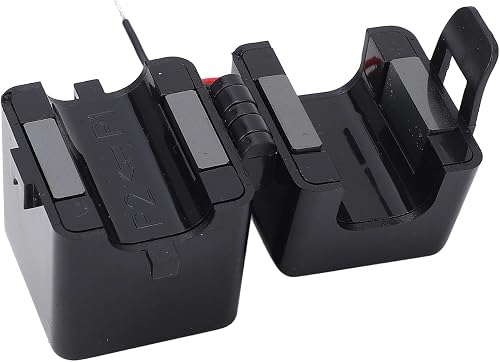

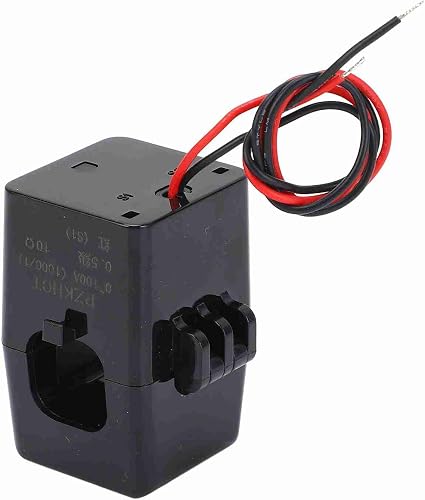

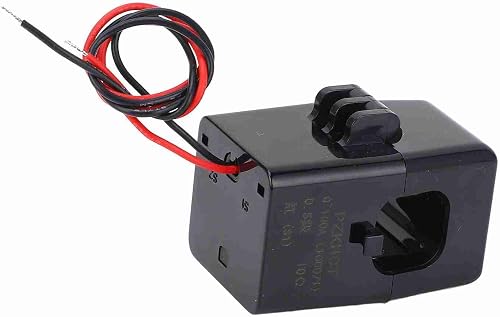

PZKHCT Split Base Current Transformer Coil Sensor for 100A Amp Energy Meter

Descriptions:

This is a mini split base current transformer; it's the smallest one compared to the similar products (output 100MA). Fully enclosed, good mechanical properties and environmental , strong voltage isolation capability, safety and reliability. Used for energy meter in special; AC 220v, 380v power supply can both be applied.

Features:

This is a mini split base current transformer; it's the smallest one compared to the similar products (output 100MA).

The diameter of inner hole is 16mm, the accuracy is ≤0.5 grade,

Using snap joint structure, it can be fixed to the cable directly through nylon ties.

Built-in input coil; small and light, easy to install.

Fully enclosed, good mechanical properties and environmental , strong voltage isolation capability, safety and reliability.

Specifications:

Model: PZKHCT

Environment temperature: -40℃~+85℃

Relative humidity: ≤ 90%(40℃)

Working frequency: 50Hz~60Hz

Insulation endurance grade: B grade (130℃)

Insulation : >1000MΩ normally

Dielectric strength: can afford power frequency 1000V/1minute

: Conform to UL94-Vo grade

Internal : 10Ω

Measuring range: 0-100A

Weight:59g

Application:

1. The current transformer is used for energy meter in special; AC 220v, 380v power supply can both be applied.

2. When you fix the energy meter, you don't need to cut off the power if you use this product.

Package Included:

1 x Current Transformer
