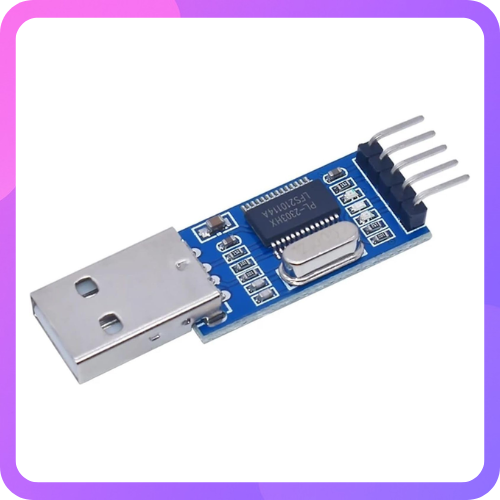

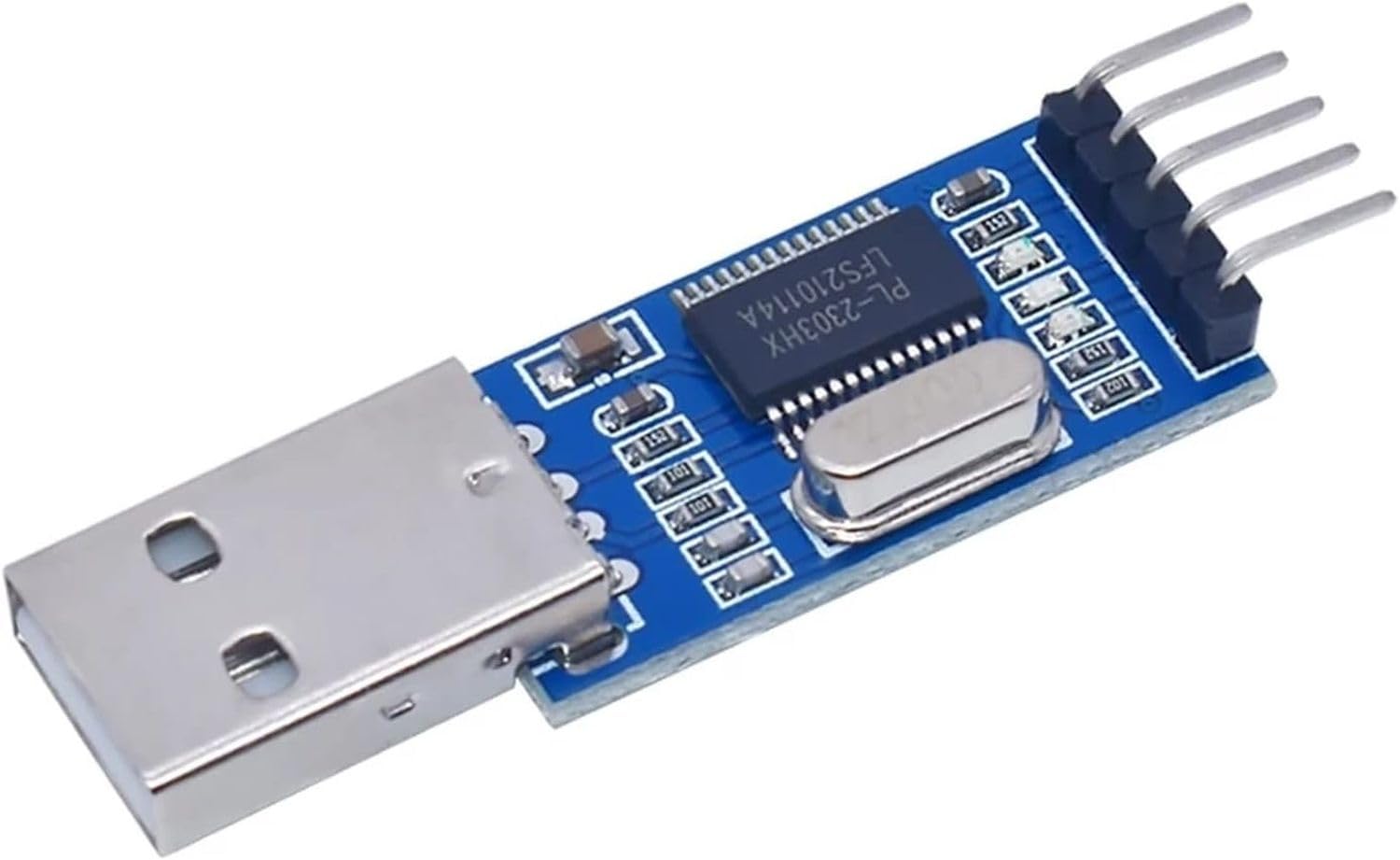

PL2303 USB-TTL Converter

The PL2303 USB to TTL (Serial) Converter Module is a versatile and reliable solution for serial communication needs. Featuring two data transmission indicators for real-time monitoring, this converter adopts an imported RS232 TTL controller for stable, high-speed operation with 500mA self-recovery fuse protection.

Key Features:

• Compatible with 32-bit & 64-bit Windows, Mac OS 8 to OS X, Linux, and Android
• Real-time data transmission monitoring with dual LED indicators
• Imported RS232 TTL controller for stable operation
• High-speed 500mA self-recovery fuse for protection
• 3.3V and 5.0V outputs available to power your project directly from the adapter
• Loopback test capability - use shunt to connect TX and RX for testing
• Compact and lightweight design

Technical Specifications:

• Model: PL2303
• Converter Type: USB to Serial (TTL) Converter
• Fuse: 500mA self-recovery
• Output Voltages: 3.3V and 5.0V
• Dimensions: 21 x 3 x 2 mm
• Weight: 10 grams

Applications:

This USB to serial converter is ideal for a wide range of applications:

• Router firmware upgrade or cracked upgrade
• HDD and ADSL firmware updates
• Broadband modem firmware upgrade
• Satellite set-top box upgrades (all kinds)
• UART debugging tools in super terminal
• Simple UART communication projects
• Microcontroller programming and debugging
• Embedded systems development

Testing:

To test the unit, use the included shunt to connect TX and RX pins for a loopback test. This verifies proper communication and data transmission functionality.

Power Options:

The converter provides both 3.3V and 5.0V outputs, allowing you to power your project directly from the adapter without requiring an external power supply. This makes it convenient for prototyping and development work.

Wide Compatibility:

Works seamlessly across multiple operating systems including Windows (32-bit and 64-bit), Mac OS 8 through OS X, Linux distributions, and Android devices, making it a versatile tool for any development environment.
