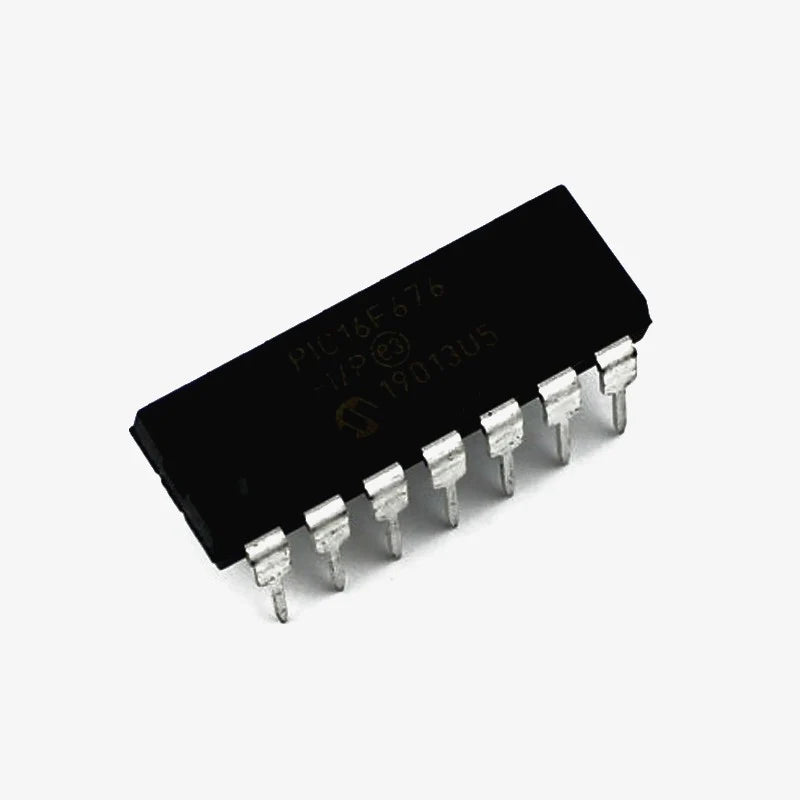

PIC16F676 Microcontroller IC - 14 Pin DIP Package

PIC16F676 is powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS Flash-based 8-bit microcontroller packs Microchip’s powerful PIC® MCU architecture into a 14-pin package and features 8 channels for the 10-bit Analog-to-Digital (A/D) converter, 1 comparator and 128 bytes of EEPROM data memory. This device is easily adapted for automotive, industrial, appliances and consumer entry-level product applications that require field re-programmability.

It has 128 bytes of EEPROM and 64 Bytes of SRAM. For debugging and Programming, it has an ICD2 interface with optional header adapter. The Pull-up state of the pins can be programmed to decrease additional resistor counts in applications.

PIC16F676 pinout:
