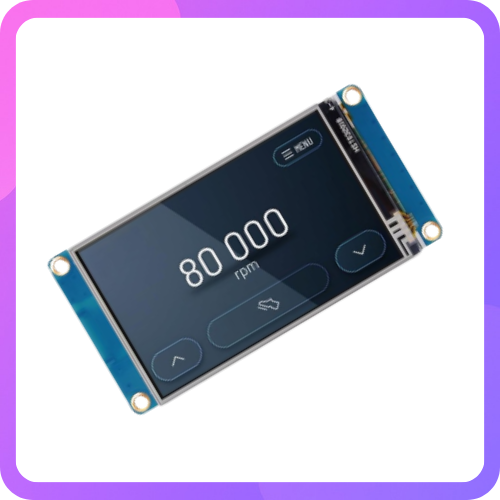

Nextion NX4832T035 3.5″ HMI TFT LCD Touch Display Module (480×320)

Nextion HMI Displays are widely used for creating intelligent and user-friendly touch-based control interfaces. The Nextion NX4832T035 3.5″ HMI TFT LCD Module offers a powerful and cost-effective solution for building interactive display systems for IoT devices, consumer electronics, automation, and embedded applications.

This 3.5-inch display features a 480×320 resolution TFT screen with 65K true-to-life colors and an integrated 4-wire resistive touch panel. It provides a seamless Human Machine Interface (HMI) between users and machines, allowing easy control and visualization of processes, devices, or applications.

The module operates within a voltage range of 4.75V to 7V, with 5V recommended. It includes 16MB flash memory for storing user application code, images, fonts, and data. The onboard microSD card slot enables convenient firmware updates. Communication is handled via a simple 4-pin TTL serial interface, making it easy to connect with microcontrollers such as Arduino, ESP modules, STM32, and other development boards.

With adjustable brightness from 0 to 180 nits and low power consumption, this intelligent display module is ideal for replacing traditional LCD panels and LED-based displays in modern embedded systems.

Key Features

480 × 320 resolution
RGB 65K color display
3.5″ TFT screen with integrated resistive touch panel
4-pin TTL serial communication interface
16MB flash memory for user applications and data
Onboard microSD card slot for firmware upgrades
Visual area: 73.44mm × 48.96mm
Adjustable brightness (0–180 nits)
Recommended supply: 5V DC
Typical power consumption: 145mA

This display module is suitable for IoT projects, industrial control panels, home automation systems, smart appliances, and other interactive embedded applications.

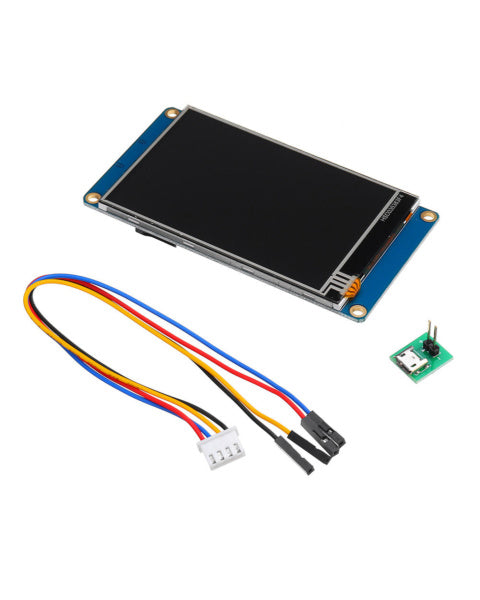

Package Includes:
1 x Nextion NX4832T035 3.5″ HMI TFT LCD Touch Display Module
1 x Connecting Wires
1 x Power Supply Test Board
