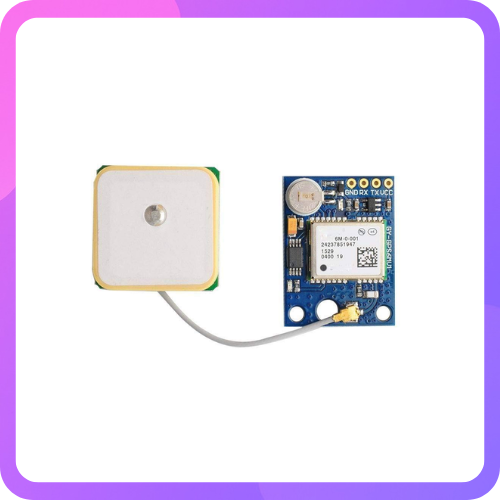

NEO-6M GPS Module with EPROM - U-blox GPS for Arduino & Drones

If you are wandering to navigate the distance with a drone then this GPS Module is needed for you. GPS drones are equipped with a GPS module that allows them to know their location relative to a network of orbiting satellites. Connecting to signals from these satellites allows the drone to perform functions such as position hold, autonomous flight, return to home, and waypoint navigation.

This is a complete GPS module that is based on the NEO 6M GPS. This unit uses the latest technology to give the best possible positioning information and includes a larger built-in 25 x 25mm active GPS antenna with a UART TTL socket. A battery is also included so that you can obtain a GPS lock faster. This is an updated GPS module that can be used with ardupilot mega v2. This GPS module gives the best possible position information, allowing for better performance with your Ardupilot or other Multirotor control platform.

The GPS module has serial TTL output, it has four pins: TX, RX, VCC, and GND. You can download the u-center software for configuring the GPS and changing the settings and much more.

NOTE: NEO-6M GPS Module is not compatible with APM 2.8 Flight Controller

Features:

• 5Hz position update rate
• Operating temperature range: -40 TO 85°C
• UART TTL socket
• EEPROM to save configuration settings
• Rechargeable battery for Backup
• The cold start time of 38 s and Hot start time of 1 s
• Supply voltage: 3.3 V
• Configurable from 4800 Baud to 115200 Baud rates (default 9600)
• SuperSense® Indoor GPS: -162 dBm tracking sensitivity
• Support SBAS (WAAS, EGNOS, MSAS, GAGAN)
• Separated 18X18mm GPS antenna

Pin Configuration:

• TX - Transmit pin
• RX - Receive pin
• VCC - Power supply (3.3V)
• GND - Ground

Applications:

• Drone navigation and positioning
• Autonomous flight systems
• Arduino and Raspberry Pi projects
• GPS tracking devices
• Multirotor control platforms
• Position hold and waypoint navigation

Package Includes:

• NEO-6M GPS Module with built-in antenna
• Rechargeable backup battery
