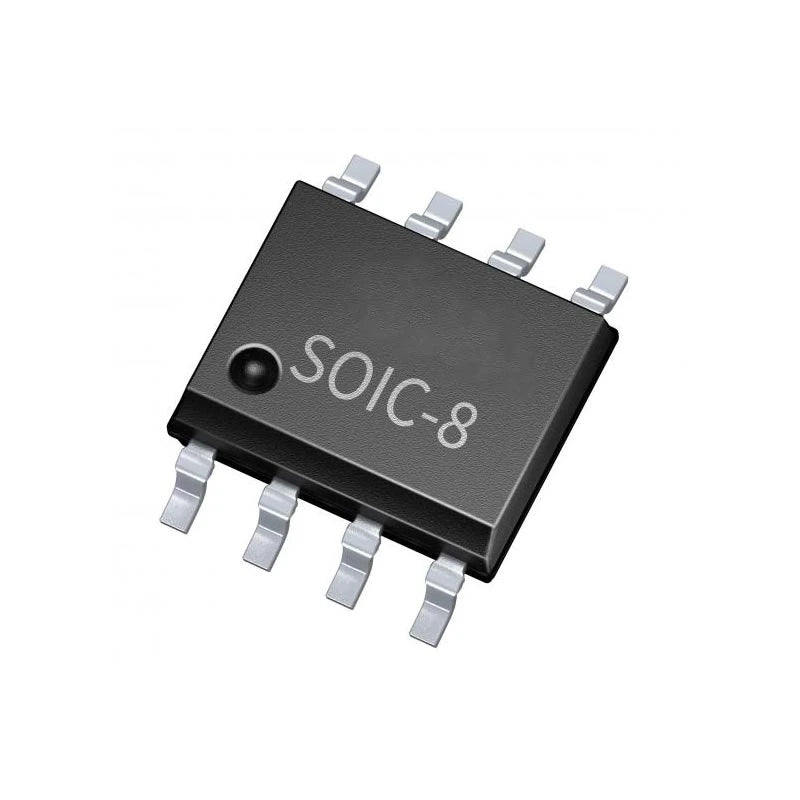

NE555DR - Single Precision Timer RTC 8-Pin SOIC
NE555DR - Single Precision Timer RTC 8-Pin SOIC
SKU:
Regular price
Rs. 10.00
Regular price
Sale price
Rs. 10.00
Shipping calculated at checkout.
Share
Quantity
2500 in stock
Couldn't load pickup availability
Technical Specifications
Brand:
Texas Instruments
Case/Package:
SOIC
Max Supply Voltage:
16 V
Mount:
Surface Mount
Number of Pins:
8
Current Rating:
10 A
Max Operating Temperature:
70 C
Min Operating Temperature:
0 C
Min Supply Voltage:
4.5 V
Nominal Supply Current:
2 mA
Frequency:
500 kHz
Operating Supply Current:
10 mA
Quiescent Current:
15 mA
Description
These devices are precision timing circuits capable of producing accurate time delays or oscillation. In the time-delay or mono-stable mode of operation, the timed interval is controlled by a single external resistor and capacitor network. In the a-stable mode of operation, the frequency and duty cycle can be controlled independently with two external resistors and a single external capacitor.
