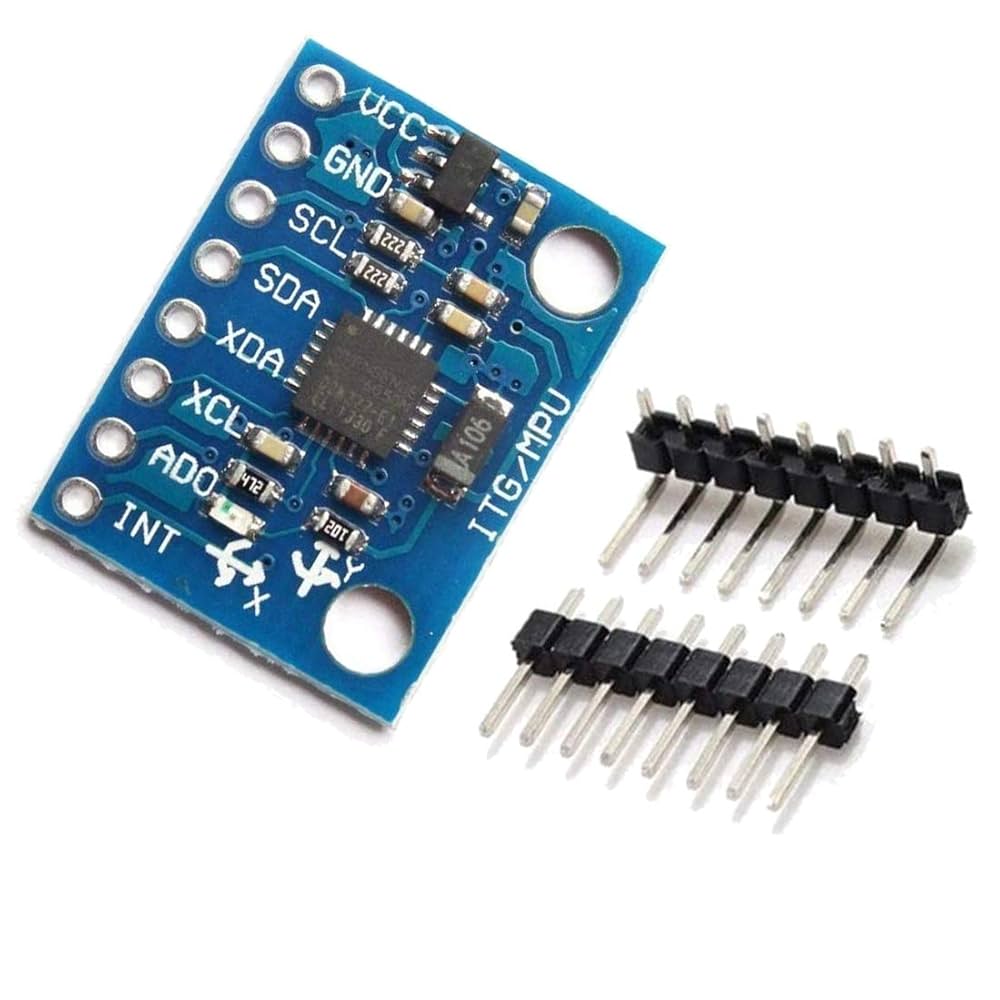

MPU-6050 6-Axis IMU ā€” 3-Axis Gyroscope + 3-Axis Accelerometer (GY-521 style breakout)

MPU-6050 6-Axis IMU ā€” 3-Axis Gyroscope + 3-Axis Accelerometer (GY-521 style breakout)

VT00744

Rs. 160.00
Rs. 199.00 Rs. 160.00
Sale Sold out
Shipping calculated at checkout.

25 in stock

MPU-6050 integrates a 3-axis gyroscope and 3-axis accelerometer with an IĀ²C interface and an optional on-chip DMP for sensor fusion. Widely used in drones, robotics and motion-tracking projects.

TheĀ MPU-6050Ā 3-AxisĀ Accelerometer and Gyro SensorĀ module useĀ MPU-6050Ā which is a little piece of motion processing tech. The MPU6050 datasheet is available in the attachment section to get this visit.

There are different types ofĀ magnetometerĀ are available the basic differences betweenĀ MPU6000,Ā MPU6050Ā andĀ MPU6500Ā is:

MPU6000 MPU6050 MPU6500
1. A sampling rate of 8 kHz. 1. A sampling rate of 8 kHz. 1. A sampling rate of 32 kHz.
2. Supports SPI and I2C interface. But I2C is too slow to handle 8 kHz gyro update. 2. Supports I2C interface communication protocol. 2. Supports both I2C and SPI interface.
3. Vibration Sensitivity is better than MPU6500. 3. Vibration Sensitivity is better than MPU6500 but the speed of operation is less than MPU6000. 3. It is more susceptible to vibrations, so the need for some vibration isolation methods.

Ā

It is faster than both MPU.

TheĀ MPU6050Ā devices combine aĀ 3-axis gyroscopeĀ and a 3-axisĀ accelerometerĀ on the same silicon together with an onboard Digital Motion Processor (DMP) capable of processing complex 9-axis MotionFusion algorithms. To get more insights about specifications visit the MPU6050 datasheet.

If you want to Explore more about Accelerometer Then click on,Ā Accelerometer and Gyroscope

Features :

  1. Chip built-in 16bit AD converter, 16-bit data output.
  2. I2C Digital-output of 6 or 9-axis MotionFusion data in rotation matrix, quaternion, Euler Angle, or raw data format.
  3. Selectable Solder Jumpers on CLK, FSYNC, and AD0.
  4. Digital Motion Processingā„¢ (DMPā„¢) engine offloads complex MotionFusion, sensor timing synchronization, and gesture detection.
  5. Embedded algorithms for run-time bias and compass calibration. No user intervention is required.
  6. Digital-output temperature sensor.

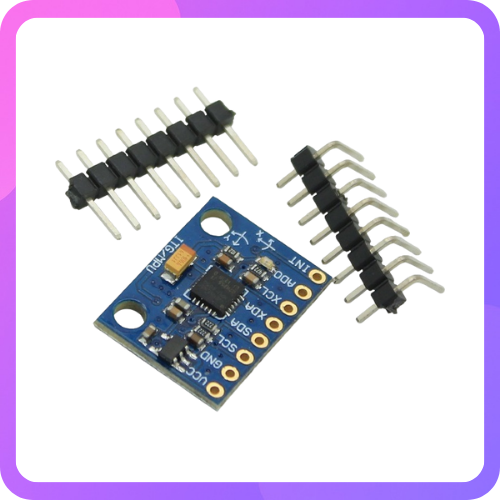

Package Includes:

1 xĀ MPU-6050 Gyro Sensor 2 + Accelerometer.

1 x 1*8 Burg connector Pins(Right angle).

1x 1*8 Burg connector Pins(Straight).
