MOC -7811 ENCODER SENSOR -SLOTTED OPTO ISOLATER

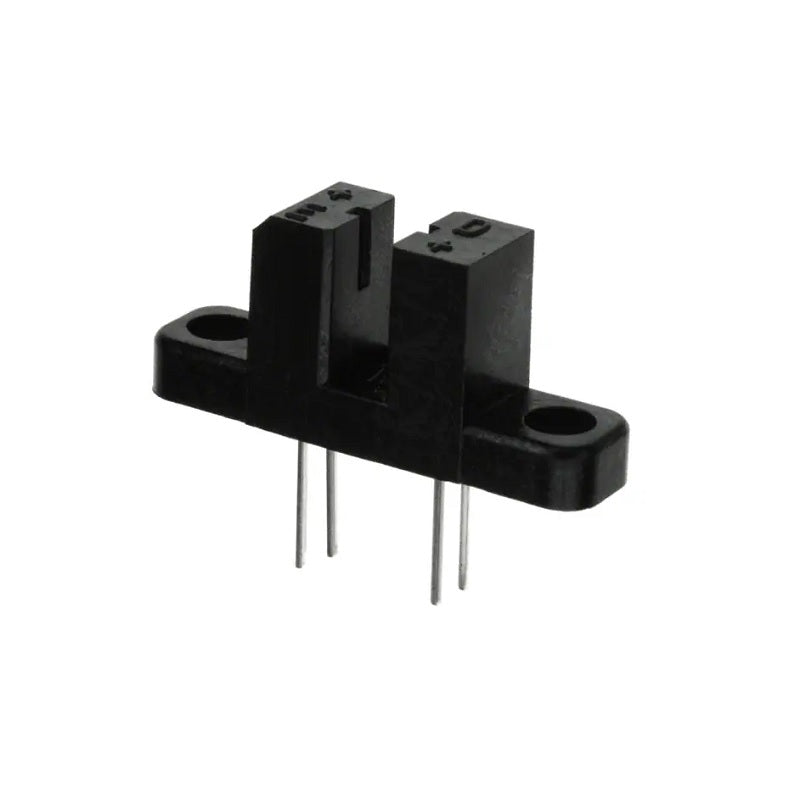

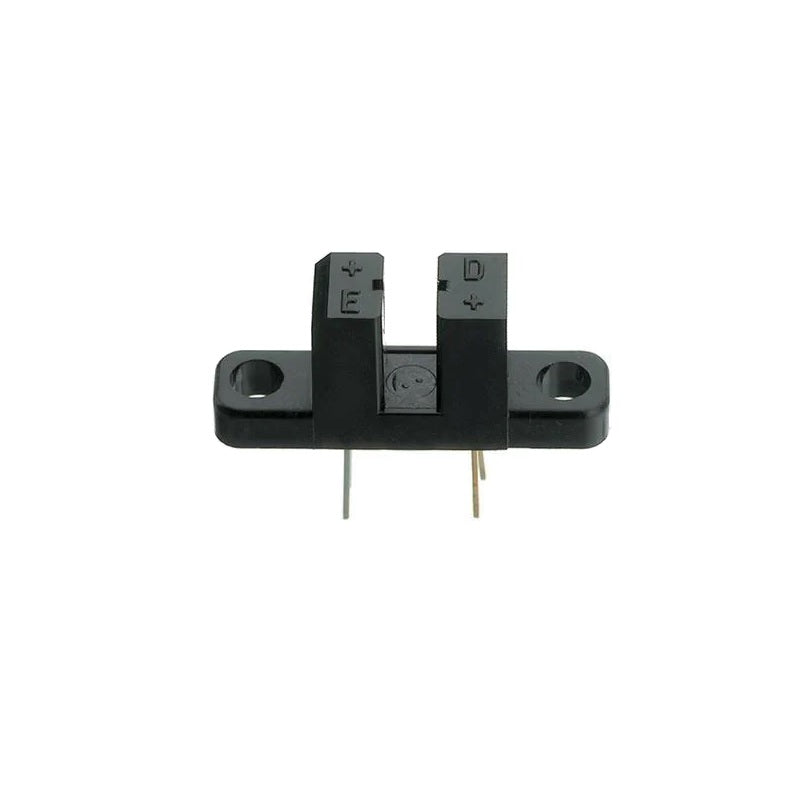

MOC7811 Slotted Opto Isolator Module Slotted couplers consist of an infrared-emitted diode facing a photodetector in a molded plastic housing. A slot in the housing between the emitter and the detector provides a means of interrupting the signal. A wide selection of standard and custom housing and detector functions is available. All IREDs and photodetectors in the miniature case 349 can be used in these housings. Tags, TCST2103, TCST2202, TCST2300.

Features/Specs:

• Part No: MOC7811
• Manufacturer: Motorola
• Current Transfer Ratio: 5 % minimum @ 20mA Forward Current (IF)
• Max VCE (sat) @ 30mA Forward Current (IF): 0.4V
• Ton typical @5V DC: 12µs
• Toff typical @5V DC: 60µ
• Package / Case: 354A
• Pin Pitch: 2.54mm
• Mounting hole diameter: 3.3 mm
• Mounting hole-to-hole spacing: 19 mm
• Slot Width: 3 mm
• Slot Depth: 7 mm

• DC motor position/velocity control
• Position and velocity servomechanisms
• Factory automation robots
• Numerically controlled machinery
• Computer printers and plotters
