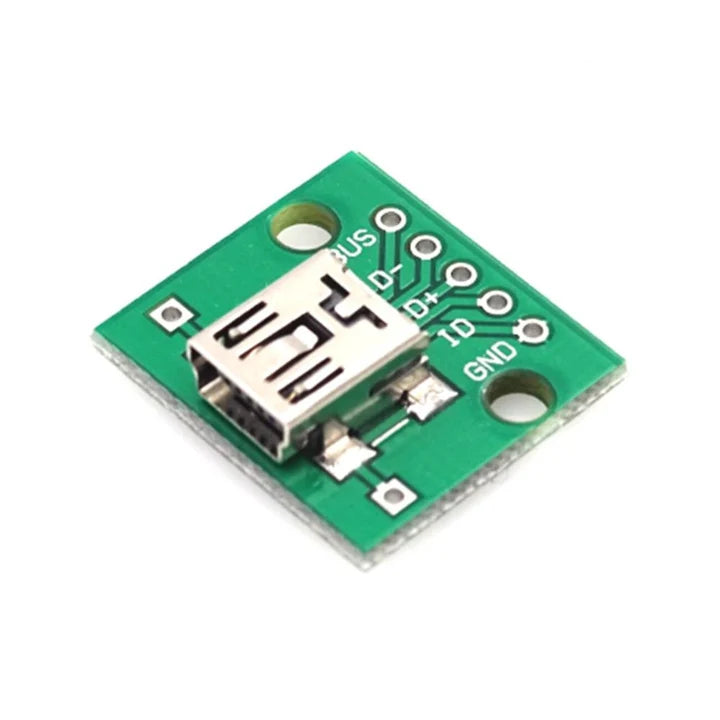

Mini USB Turn Dip Female Mini USB Type B Female SMD DIP Switch Adapter

Mini USB Turn Dip Female Mini USB Type B Female SMD DIP Switch Adapter

Rs. 19.00
Rs. 19.00
Sale Sold out
Shipping calculated at checkout.

100 in stock

Specification

Description

The Mini USB Type B Female to DIP Adapter Plate is a versatile interface solution that connects Mini USB Type B Female ports to Dual Inline Package (DIP) components using a DIP switch.

Here are the key Features of this Adapter Plate:

Mini USB Type B Female: Equipped with a Mini USB Type B Female connector, commonly found in various electronic devices.

DIP Switch Interface: Includes a DIP switch interface for seamless connectivity with DIP components.

DIP Components: Specifically designed for interfacing with Dual Inline Package (DIP) switches, allowing easy integration of these components with Mini USB Type B Female ports.

Surface Mount Device (SMD) Technology: Utilizes SMD technology for a compact and efficient design, suitable for modern electronics.

Soldering Capability: Designed for soldering, providing a secure and reliable connection when welded to a circuit board or electronic project.

Application:

Custom Electronics Design: Facilitates the integration of DIP components into custom-designed circuits that utilize Mini USB Type B Female ports.

Electronic Prototyping: Useful for testing and prototyping electronic circuits and connections.

Space-Efficient: Compact design ensures easy integration into electronic projects without occupying excessive space.

Stable Connectivity: Ensures a secure and stable connection between Mini USB Type B Female ports and DIP components.

Accessible Switches: Provides easy access to the connected DIP switches, allowing for convenient adjustments and configurations.

Features

  • Brand new and high quality.
  • Base Material: FR4.
  • MICRO USB ( 5pin, B type, female connector ) to DIP (2.54mm pin pitch).
  • Connector Type: USB Type -B
  • Compatible Devices:  Printer Dev. Board etc

Physical Attributes

  • L x W x H (mm): 20 x 18 x 6
  • Weight (gm) : 2

Package Includes

  • 1 x Mini USB turn Dip female mini USB type B female SMD DIP switch adapter
