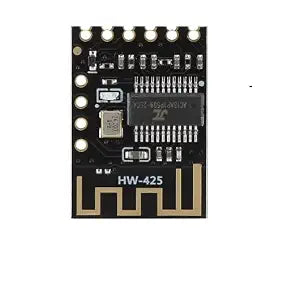

MH-M18 Wireless Bluetooth Audio Receiver Board Module BLT 4.2 mp3

MH-M18 Wireless Bluetooth Audio Receiver Board Module BLT 4.2 mp3

Rs. 60.00
Rs. 60.00
Sale Sold out
Shipping calculated at checkout.

250 in stock

This MH-M18 Wireless Bluetooth Audio Receiver Board is a low power design solution, which supports the latest Bluetooth 4.2 transmission. Convert your old speakers into a Bluetooth equipped speaker with the help of this module. With a maximum range of 20 meters.


Applications:
  1. Conversion of old speakers into Bluetooth speaker
  2. DIY Bluetooth speakers

Note: This Product is available in two different variant of IC chip (MH-M18 and JL AS208PO1429-25C4) with same working, we will ship it randomly


Features:

  1. Support WAV/WMA/FLAC/APE/MP3 lossless decoding, stereo two-channel output
  2. Support Bluetooth Protocol HFPV1.7, A2DPV1.2, AVRCPV1.5, AVCTPV1.2, AVDTPV1.2
  3. Maximum Transmission Distance of 20 meters.
  4. Can be powered via lithium Battery.


Package Includes:

1 x MH-M18 Wireless Bluetooth Audio Receiver Board Module BLT 4.2 mp3 lossless decode



Specifications:

Model

MH-M18
Bluetooth Version

Bluetooth 4.2
Operating Voltage (VDC)

3.7 ~ 5
Max. Operating Current (mA)

20
Transmission Distance

20 meters
Operating Temperature (°C)

-40 to 85
Sensitivity

-87dbm
Length (mm)

23
Width (mm)

11
Height (mm)

2
Weight (gm)

1
