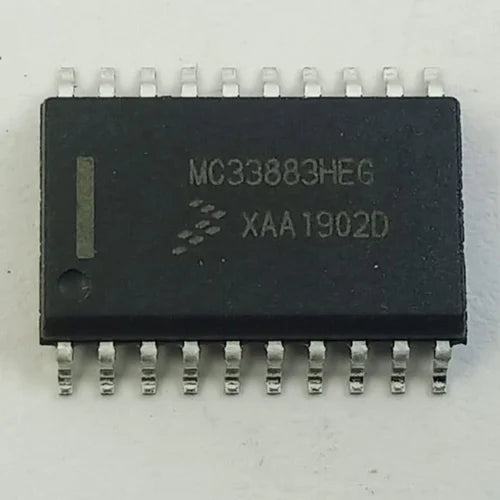

MC33883HEG SMD Driver IC, For Inverter

Vcc operating voltage range from 5.5 V up to 55 V

Vcc2 operating voltage range from 5.5 V up to 28 V

1.0 A peak gate driver current

use in UPS Inverter PCB

Amaron, Exide, Genus, Vgaurd PCB

for 12v supply

DescriptionMC33883HEGThe 33883 is an H-bridge gate driver (also known as a full-bridge pre-driver) IC with integrated charge pump and independent high and low side gate driver channels.The gate driver channels are independently controlled by four separate input pins, thus allowing the device to be optionally configured as two independent high side gate drivers and two independent low side gate drivers.The low side channels are referenced to ground. The high side channels are floating.
All the products supplied by Climax Components Inc, are genuine and original. We offer 7 days replacement warranty in case of manufacturing defects
