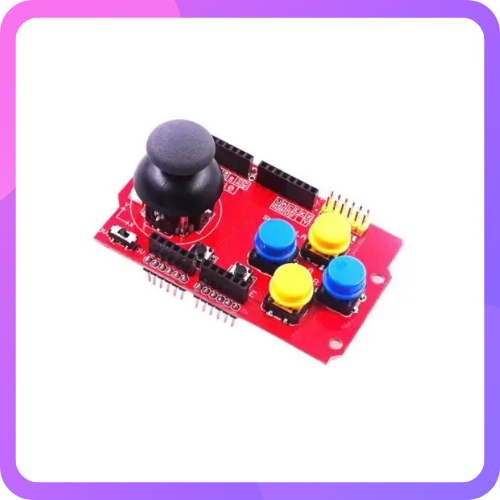

The Joystick Shield Module Robotics Control is an Arduino Uno compatible expansion board that transforms your Arduino into a versatile game controller or robotic control interface. Designed to stack directly on top of an Arduino Uno or compatible board, this shield provides intuitive manual control using a two-axis analog joystick and multiple push buttons, making it ideal for robotics, RC vehicles, IoT controllers, and interactive projects.
The shield features a PS2-style two-axis thumb joystick. The X-axis potentiometer is connected to analog pin A0 and the Y-axis potentiometer is connected to A1. These analog inputs typically return values from 0 to 1023 using the Arduino’s 10-bit ADC. At rest, both axes usually read around 512, representing the midpoint. When the joystick is moved, the readings increase or decrease depending on the direction of movement. The joystick also includes a built-in push button labeled K, which is activated by pressing the joystick downward and is connected to digital pin D8.
In addition to the joystick, the board includes six external momentary push buttons labeled A through F. Four large buttons are commonly used for directional control or action commands, while the two smaller buttons are typically used for functions such as Start or Select. All buttons use pull-up resistors and are active-low, meaning they connect to ground when pressed. The button pin mapping is as follows: Button A to D2, Button B to D3, Button C to D4, Button D to D5, Button E to D6, and Button F to D7.
For wireless communication, the shield provides a dedicated Bluetooth interface. The RX and TX lines are broken out to a 4-pin female header along with 3.3V and GND, allowing easy connection of 3.3V Bluetooth modules or other TTL serial devices.
An additional I2C connector is included, with SDA and SCL lines available on a 4-pin male header along with 5V and GND. These lines are also available on the standard A4 and A5 pins of the Arduino, but the separate header simplifies I2C device integration.
The shield also includes a dedicated socket for the nRF24L01 RF transceiver module. This connector maps CE to D9, CSN to D10, SCK to D13, MOSI to D11, and MISO to D12, with 3.3V and GND provided. The IRQ pin is not connected. This allows easy implementation of wireless communication between robots or remote systems.
A Nokia 5110 LCD interface is also provided for a 48×84 pixel display module. However, this interface shares pins D9 to D13 with the nRF24L01 module, so both cannot be used simultaneously.
An additional dual-row interface header provides access to joystick signals, button pins, power lines, and ground, giving flexibility for custom wiring or expansion. The shield also includes a power selection switch that allows switching between 3.3V and 5V operation, depending on the connected peripherals.
This joystick shield is ideal for robotics control systems, remote vehicles, wireless controllers, DIY gaming consoles, and interactive embedded projects where manual input and wireless capability are required.
Package Includes
1 x Joystick Shield Module Robotics Control
