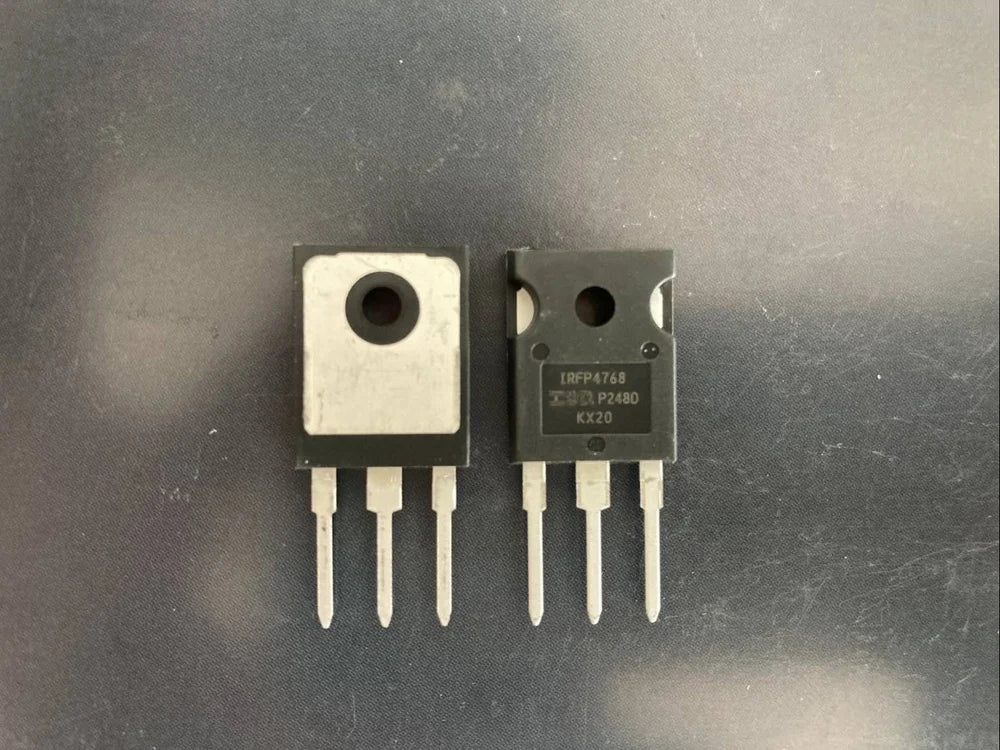

IRFP4768 Infineon Power MOSFET
IRFP4768 Infineon Power MOSFET
SKU:
Regular price
Rs. 220.00
Regular price
Sale price
Rs. 220.00
Shipping calculated at checkout.
Share
Quantity
100 in stock
Couldn't load pickup availability
| Type | N Channel |
| Channel Type | N Channel |
| Brand | Infineon Technologies |
| Maximum Gate Source Voltage | 250 V |
| Maximum Continuous Drain Current | 93 A |
| Mounting Type | Through Hole |
| Part Number | IRFP4768PBF |
| Maximum Drain Source Resistance | 17.5 mOhms |
| Maximum Operating Temperature | - 55 C ~ + 175 C |
| Pin Count | TO-247-3 |
| Gate Charge (Qg) | 180 nC |
| Description: | MOSFETs MOSFT 250V 83A 21mOhm 195nC Qg |
| Manufacturer: | Infineon Technologies |
| Product Category: | MOSFETs |
| Transistor Polarity: | N-Channel |
| Number of Channels: | 1 Channel |
| Vgs - Gate-Source Voltage: | - 20 V, + 20 V |
| Vgs th - Gate-Source Threshold Voltage: | 1.8 V |
| Pd - Power Dissipation: | 520 W |
| Channel Mode: | Enhancement |
| Packaging: | Tube |
| Configuration: | Single |
| Fall Time: | 110 ns |
| Forward Transconductance - Min: | 100 S |
| Product Type: | MOSFETs |
| Subcategory: | Transistors |
| Transistor Type: | 1 N-Channel |
IRFP4768 N-Channel Power MOSFET – TO-247AC Package
The IRFP4768 is a 250V Single N-Channel HEXFET Power MOSFET from Infineon Technologies, designed for high-efficiency switching applications. It combines advanced process technology, low on-resistance, and high ruggedness, making itÂ
