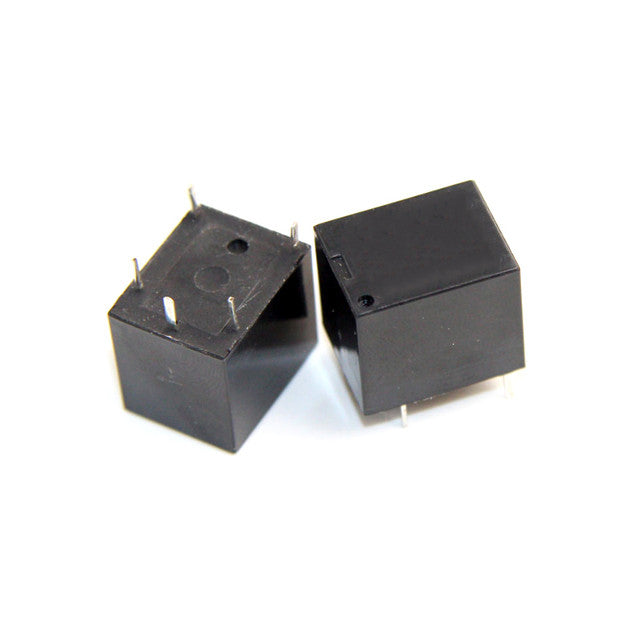

HD1-1SZ-DC12V - 12V 10A 1FormC Power Relay

Name: HD1-1SZ-DC12V - 12V 10A 1FormC Power Relay
Brand: Voltros .in
Price: 38.00 INR
Availability: InStock

SKU:

Rs. 38.00

Sale Sold out

Shipping calculated at checkout.

50 in stock

Technical Specifications

Brand:

HDP

Contact Arrangement:

1 Form C

Coil Voltage (DC):

12 V

Contact Current Rating:

10 A

Contact resistance:

100 mohm Max.(at 1A 6VDC)

Contact material:

AgSnO2

Max. switching current:

15A

Max. switching power:

2500VA/300W

Max. switching voltage:

277VAC/30VDC

Insulation resistance:

1000 Mohm(at 500VDC)

Operate time:

Release time:

Mechanical endurance:

10000000 ops

Humidity:

5% to 85% RH

Ambient temperature:

-40~85 C

Termination:

PCB

Unit weight:

Approx.10g

Construction:

Plastic sealed, Flux proofed
