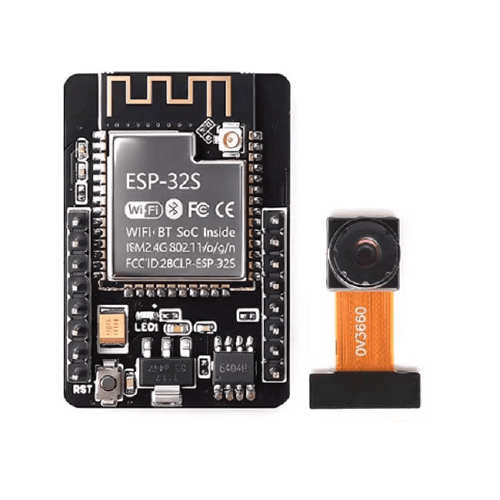

ESP 32 Cam Module with OV3660

The ESP 32 CAM Module is a WiFi & Bluetooth-based Camera Module is a compact and high-performance IoT development board designed for wireless image processing, AI vision, and smart surveillance applications. Powered by the ESP32 dual-core processor and equipped with the OV3660 3MP camera sensor, this module supports real-time image capture, video streaming, and cloud-based monitoring.

With built-in WiFi, Bluetooth, and BLE connectivity, the ESP32-CAM is ideal for smart home systems, industrial automation, robotics, QR recognition, and embedded AI projects. The module supports Arduino IDE and MicroPython programming, making it suitable for students, developers, and makers.

The board includes 4MB PSRAM for improved image handling, onboard SPI flash storage, and support for microSD cards for local image and video storage. Its low-power design and compact size make it perfect for battery-powered and portable applications.

Highlights

•  Built-in WiFi, Bluetooth & BLE support
•  OV3660 3MP high-resolution camera sensor
•  ESP32 dual-core processor up to 240MHz
•  520KB SRAM + 4MB PSRAM
•  Real-time image upload & video streaming
•  Supports face recognition & AI applications
•  Built-in flash LED for low-light capture
•  microSD card support for storage
•  Deep sleep mode for low-power applications
•  Compatible with Arduino IDE & MicroPython

Specifications

Package Includes:

1 x ESP 32 CAM Development Board
1 x OV3660 3MP Camera Module
