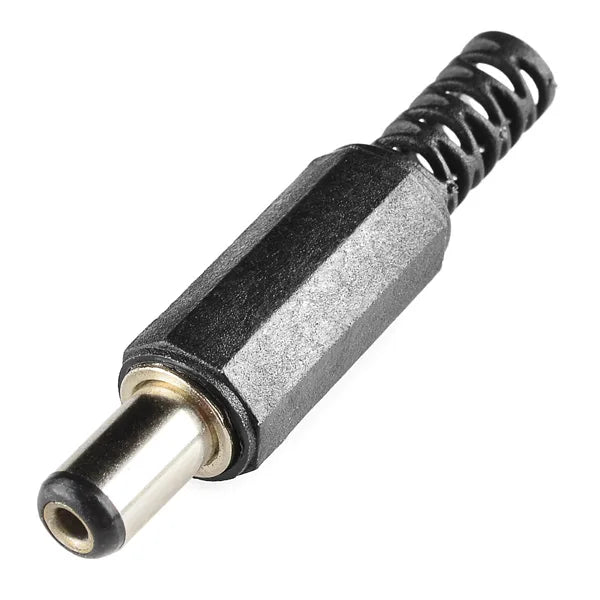

Dc Power Connector Male
This barrel jack plug is ideal for adding a standard connector to the end of our wires. The plug is compatible with 5.5mm barrel jacks that have a 2.1mm center pole diameter. The outer shell can be unscrewed to reveal solder terminals and a crimp strain relief, which also features strain relief.
Features:Â
- Excellent material, fine workmanship.
- Suitable for 6 to 30 V 1A Applications
- Compatible with 5.5mm barrel female jacks
- Color: Black.
- Avoid the polarity conflict and short circuit.
Specification:
| Item Type | DC Power Connector |
|---|---|
| Rated Current (A) | 1 |
| Rated Voltage (V): | 6 ~ 30 |
| Allowed Wire Size (AWG): | 20 ~ 18 |
| Color: | Black |
| Length (mm): | 48.8 |
| DC Jack OD x ID (mm) | 5.5 x 2.1 |
| Weight (g): | approx. 1.5, each |
| Shipping Weight | 0.02 kg |
| Shipping Dimensions | 10 × 7 × 4 cm |
Package Includes:
1 x Dc Power Connector Male-5Pcs.
