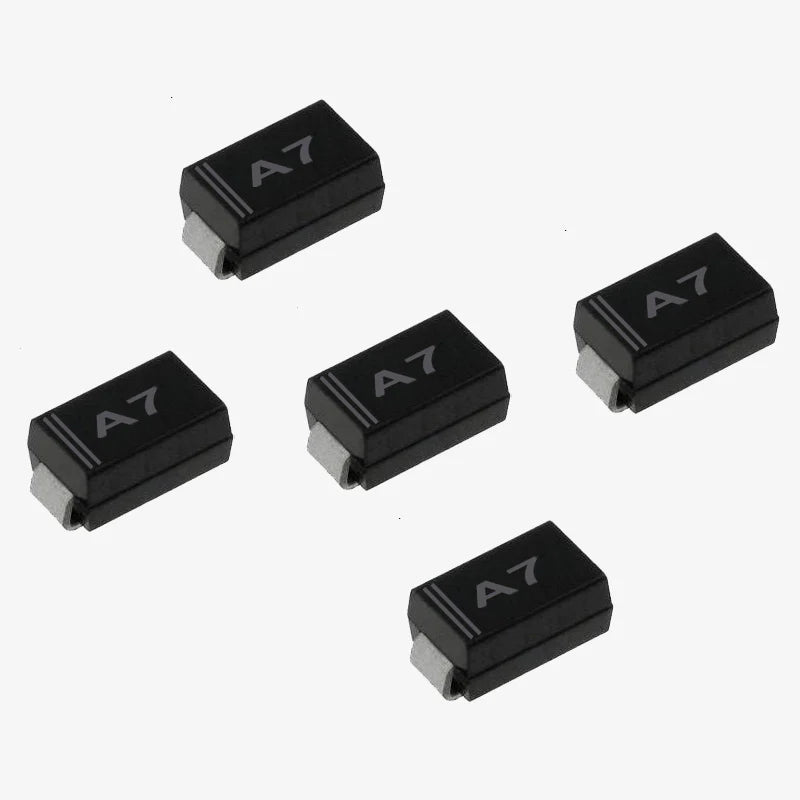

A7 / 1N4007 SMD Diode
A7 / 1N4007 SMD Diode
SKU:
Regular price
Rs. 10.00
Regular price
Sale price
Rs. 10.00
Shipping calculated at checkout.
Share
Quantity
9000 in stock
Couldn't load pickup availability
A7 Diode is nothing but SMD version of 1N4007 Diode and it's smaller in size of M7 diode. Features of A7 Reverse voltage 50 to 1000 Volts with Forward Current of 1.0 Ampere.
Features :
- Low forward voltage drop R-1
- High current capability
- High capability
- High surge current capability
- Exceeds environmental standards of MIL-S-19500/228
Mechanical Characteristics :
- Case: Molded plastic, R-1 Epoxy
- UL 94V-O rate flame retardant Lead
- Axial leads, solderable per MIL-STD-202, method 208 guaranteed Polarity
- Color band denotes cathode end Mounting position
Specifications :
| Peak Repetitive Reverse Voltage (VRRM) | 1000V |
| Maximum RMS Voltage (VRMS) | 700V |
| Maximum DC Blocking Voltage (VDC) | 1000V |
| Maximum Average Forward Rectified Current (IFAV) | 1A |
| Non-Repetitive Peak Forward Surge Current (IFSM) | 30A |
| Operating Junction Temperature Range (TJ) | − 65°C to +175°C |
| Storage Temperature Range (Tstg) | − 65°C to +175°C |
| Quantity | 1 Pieces |
Package includes :
A7 / 1N4007 SMD Diode
