5V 300mA Wireless Power Supply Transmitter Receiver Charging Coil Module

5V 300mA Wireless Power Supply Transmitter Receiver Charging Coil Module

IOT/VT

Rs. 285.00
Rs. 285.00
Sale Sold out
Shipping calculated at checkout.

Low stock: 5 left

Description

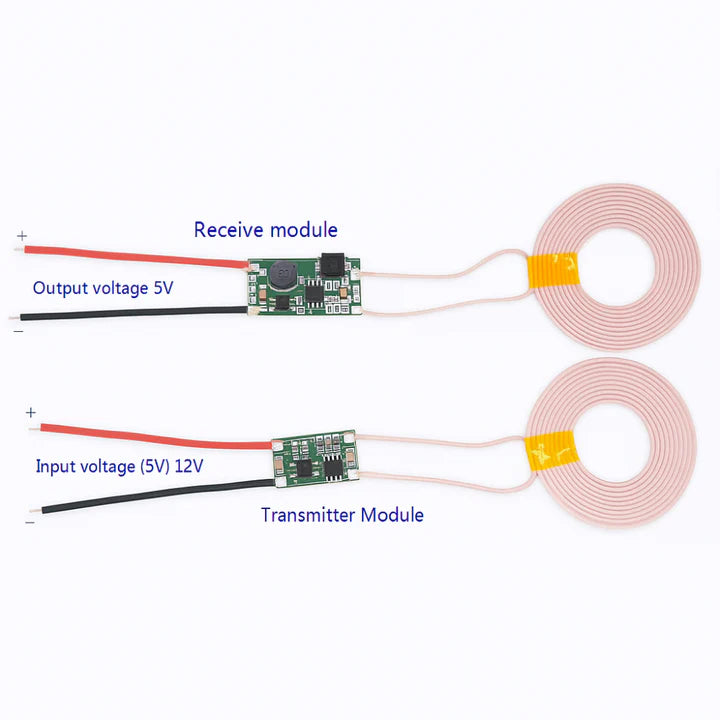

5V 300mA Wireless Power Supply Transmitter Receiver Charging Coil Module

Wireless charging modules uses an electromagnetic field to transfer energy between two objects. This is usually done with a charging station. Energy is sent through an inductive coupling to an electrical device, which can then use that energy to charge batteries or run the device. This is a new wireless charging module, which could provide 5V@300mA power output. It is using the new technology "resonant magnetic coupling, which will reduce the electricity consumption during power transmission. The transfer efficiency could arrive at 90%. It could meet your most project requests.

Technical Details

  • Input Voltage (Transmitter): 5V DC
  • Output Voltage (Receiver): 5V DC
  • Output Current: 300mA
  • Power Transfer Efficiency: 70–80%
  • Transmission Distance: 3–10mm (optimal at 5mm)
  • Operating Frequency: 100–200kHz

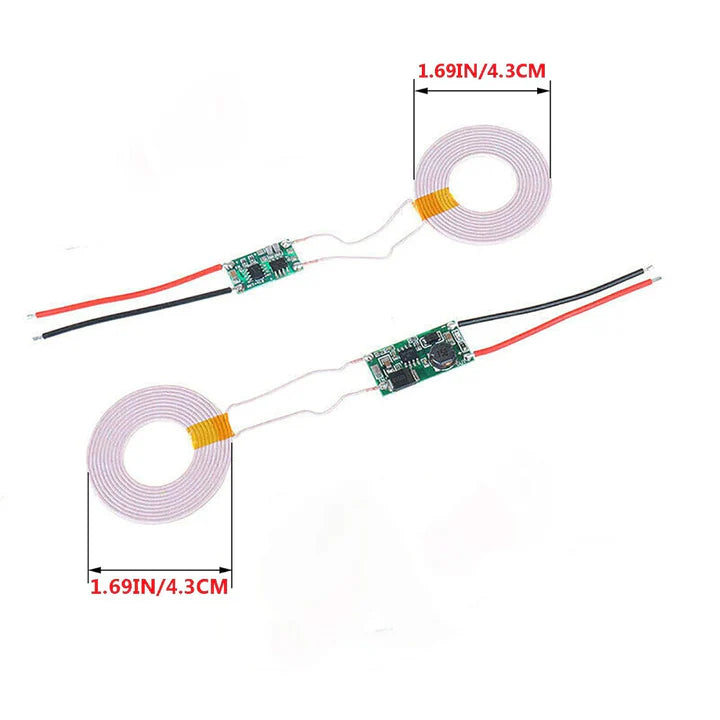

  • Coil Outer Diameter: 4.3cm (1.69 inch)
  • PCB Module Size: approx. 2.5cm × 1.1cm
  • Operating Temperature: −20°C to +60°C
  • Coil Type: Flat spiral enamel-coated copper wire
  • Coil Binding: Secured with Kapton (polyimide) tape
  • PCB Color: Green, FR4 substrate
  • Connection Wires: Red (+) and Black (−) power leads
  • Typical Applications: Wireless charging, embedded power transfer, DIY electronics
  • Weight: 26g

Features

  • 5V input, 300mA output
  • Wireless charging receiver
  • Efficient power transfer
  • Compact design
  • Compatible with Qi-enabled devices
  • High charging speed
  • Stable and reliable performance

Applications :

  • Smartphones and Tablets: Used in wireless charging docks or pads to charge mobile devices without the need for physical connections.
  • Wireless Charging Stations: Installed in public or home charging stations for wireless charging of various gadgets.
  • Electric Toothbrushes: Provides convenient charging for electric toothbrushes without requiring wired connections.
  • Wearable Devices: Used for wirelessly charging smartwatches, fitness trackers, and other wearable tech.
  • Battery-Powered Gadgets: Ideal for charging portable devices, such as power banks, without the need for plug-in chargers.
  • Home Automation Devices: Powers smart home gadgets and sensors, ensuring they remain charged without physical connections.
  • Robotics: Can be used in robots or autonomous devices to ensure they stay charged and operational.
  • Medical Devices: Applied to medical equipment like hearing aids, where ease of charging is important.
  • Consumer Electronics: Wireless charging for smaller consumer electronics such as wireless speakers or handheld devices.
  • Electric Vehicles (EVs): Used for wireless charging of small electric vehicles or drones.
