HL  5V 10A Sugar Cube Relay

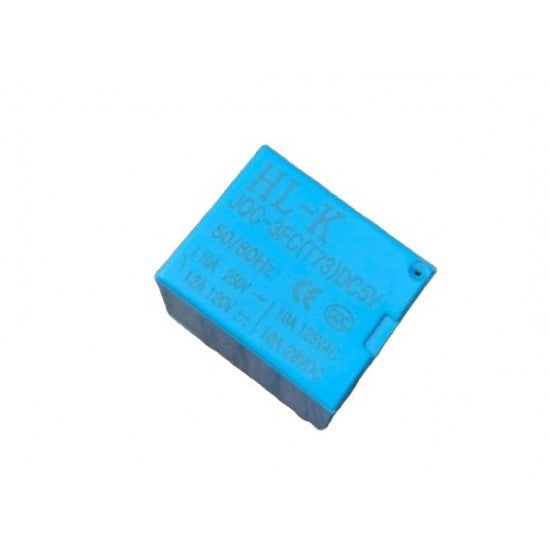

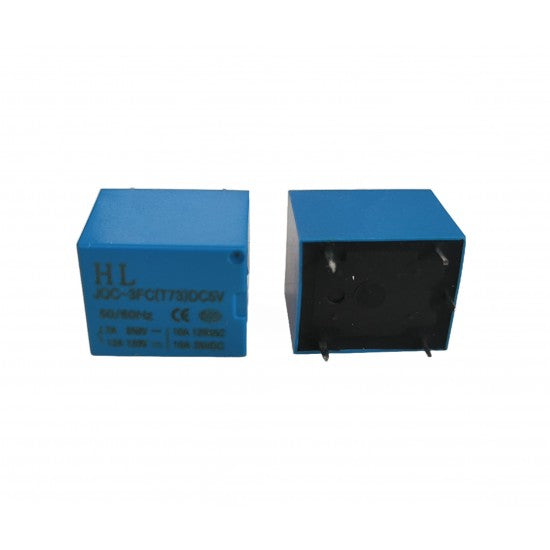

This is a HL 5V 10A Sugar Cube Relay. This HL make relay is designed with a coil which triggers at 5V DC and the switching current can be maximum up to 10A for 250VAC.

Specifications

• Trigger Voltage (Voltage across coil) 5V DC
• Trigger Current (Nominal current) 70mA
• Maximum AC load current 10A / 250 - 10A/ 125VAC
• Maximum DC load current 12A / 120 - 10A / 28VDC
• Operating time 10msec

• Release time 5mse
