4S 100A Lithium Battery Protection Board BMS for 18650 Cells

This 4S 100A BMS module provides high-current protection for four-cell lithium batteries. Ideal for demanding applications like inverters and electric vehicles.

• 4S 100A BMS protection module
• Ultra-high current 100A capacity
• Overcharge protection for battery safety
• Over-discharge protection prevents damage
• Short-circuit protection included
• Designed for four-cell lithium batteries
• Perfect for inverters and electric vehicles
• Professional-grade for demanding applications

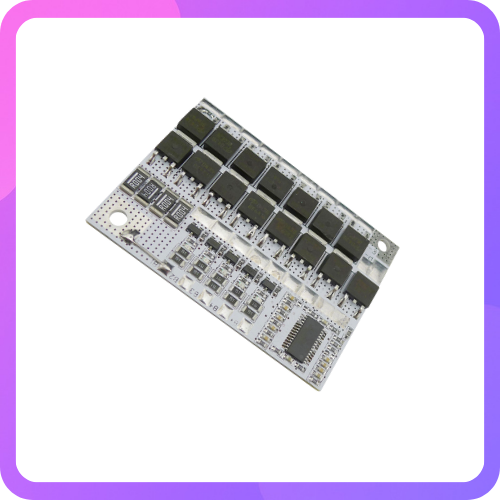

This is a White 4S 100A LiFePO4 Lithium Battery Protection Balance Charging BMS Protection PCB Board.

This protection board is 4s in common use lithium battery protection board (you can adjust for how many strings to be used) Specified chip, stable performance, support disconnection protection, over-current protection, over-discharge protection, overcharge protection, with balance, etc. A common use for “same port” and “different port”, the protection board uses 15 high-power of ultra-low resistance MOS tubes (discharge of 8, charging 7), in the same port mode can support the discharge current 60A, charging current 60A; different port mode discharges current 80A, charging current 60A. Can use for LMO. Ternary lithium battery. LCO(3.7V)battery packs etc. battery. LCO(3.7V)battery packs etc.

Features:

1. Light weight
2. Best for your LifePo4 battery
3. Easy to use
4. Easy to connect
5. Low power consumption

Package Includes:

1 x White 4S 100A LiFePO4 Lithium Battery Protection PCB Board
