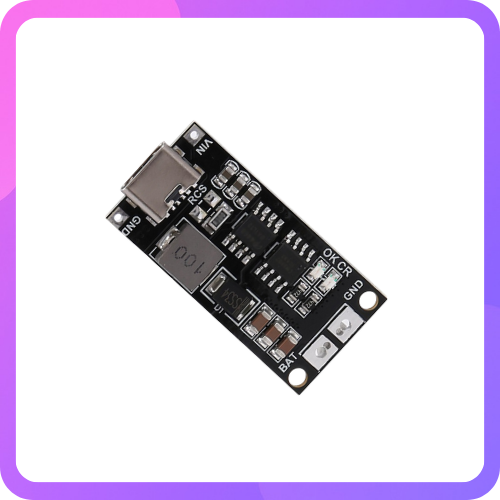

3S 12.6V 2A 18650 Lithium Battery Charger Module Type C

1. USB Type-C input for easy connectivity
2. 2A current for efficient charging
3. Built-in overcharge and short-circuit protections
4. Compact and suitable for portable projects



   The 3S 12.6V 2A 18650 Lithium Battery Charger Module with Type-C Port is a charging module for 3-cell (3S) lithium-ion battery packs configured in series, commonly using 18650 cells. This Charger Module is a reliable and efficient charging solution for 3S 18650 lithium-ion battery packs, suitable for various applications requiring robust and portable power.

   ---

   Features:

   1. Type-C USB Input : Equipped with a Type-C port, allowing for easier connections and compatibility with modern USB cables.
   2. Overcharge Protection : Protects the battery pack from overcharging, ensuring cells do not exceed safe voltage levels.
   3. Automatic Charging and Balancing : Charges the three cells in series while balancing them, preventing issues due to cell imbalance over multiple charge cycles.
   4. LED Indicators : Typically includes LED indicators to show charging status, Red LED indicates charging. Green LED indicates charging is complete.
   5. Compact Design :Small and portable, easy to integrate into various DIY projects or battery packs.

   ---

   Package Includes:

   1 x 3S 12.6V 2A 18650 Lithium Battery Charger Module Type C

Specifications:-

1.

   Output Voltage (V):	12.6
   Output Current (A):	2
   Battery Cell Composition:	3S
   Charging Current (A)	2
   Input Port	USB Type-C
   Battery Type	18650 lithium-ion cells
   Length (mm):	25
   Input Voltage (V):	5V DC
   Width (mm):	18
   Height (mm):	6
   Weight (g):	6
   Shipping Weight	0.005 kg
   Shipping Dimensions	7 × 3 × 2 cm
