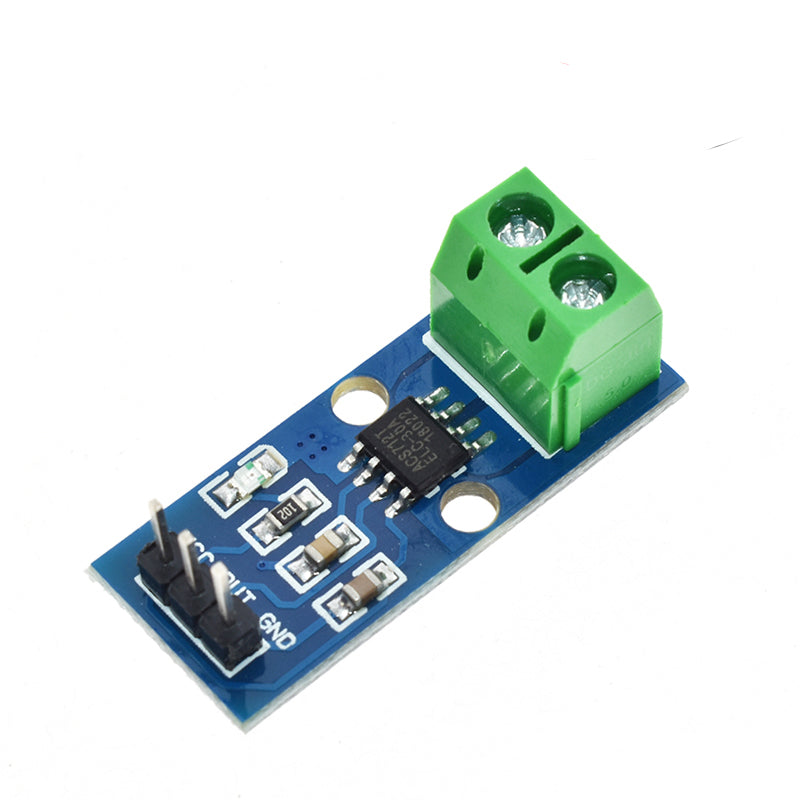

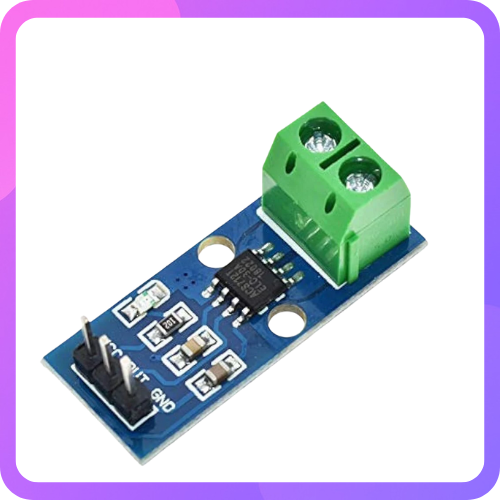

30AMPS Current Sensor Module ACS712

The 30A Range Current Sensor Module based on the ACS712 is a high-capacity Hall-effect current sensing solution designed to measure both AC and DC currents accurately. It integrates a precise, low-offset linear Hall circuit with a copper conduction path positioned near the surface of the sensor die. When current flows through this copper path, it generates a magnetic field that is detected by the internal Hall IC and converted into a proportional analog voltage output.

This contactless sensing technique provides electrical isolation between the load and the control circuitry, improving operational safety and reducing interference from high-voltage or high-current lines. The module is capable of measuring currents up to ±30A, making it suitable for higher power applications where reliable current monitoring is required.

The output of the module is an analog voltage that varies according to the measured current. This signal can be directly connected to the analog input of microcontrollers such as Arduino, AVR, PIC, ARM-based boards, and other development platforms. Its compatibility with standard 5V systems makes integration simple for both beginners and professional designers.

The ACS712 30A module is widely used in over-current protection circuits, battery management systems, switching mode power supplies (SMPS), inverters, motor control circuits, digital watt meters, and programmable power supplies. Because it supports both AC and DC current measurement, it is suitable for renewable energy systems, automotive electronics, robotics, industrial automation, and DIY electronics projects.

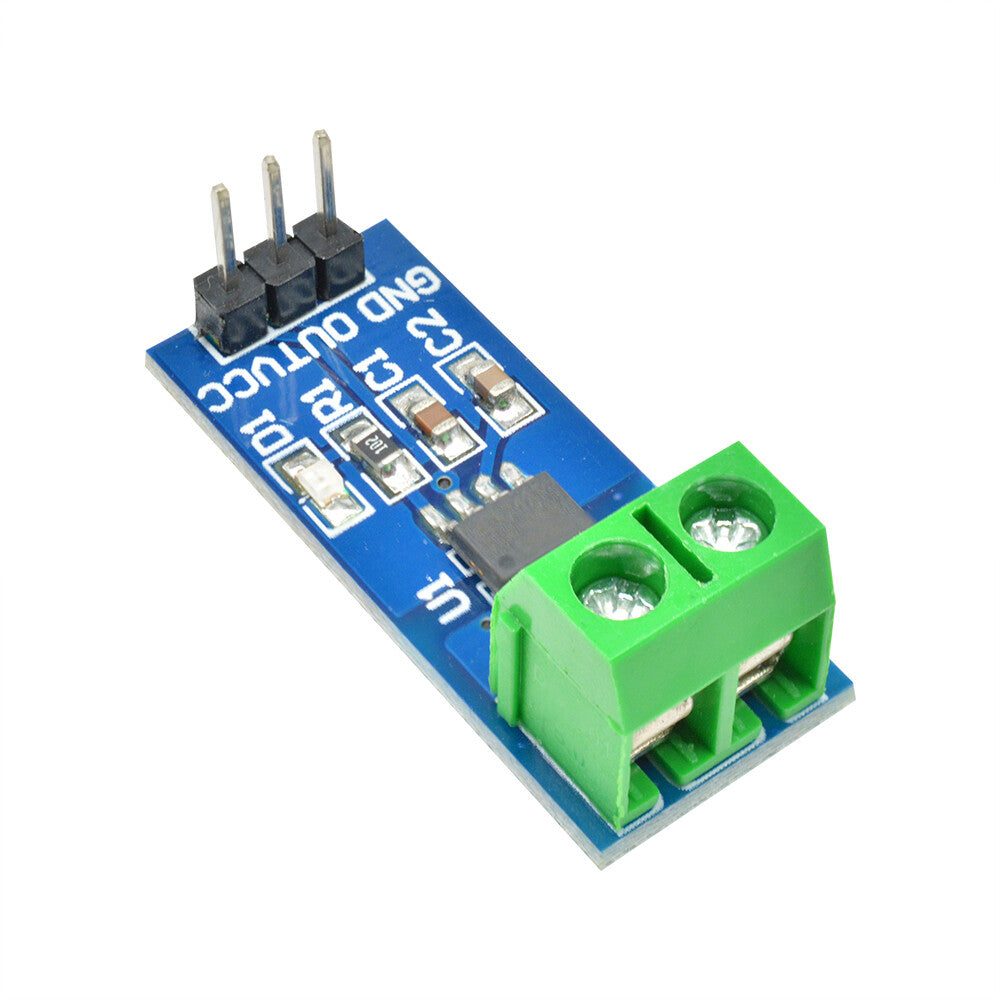

The board typically includes clearly marked terminals for the current path (IP+ and IP−) and header pins for VCC, GND, and analog OUT connections, ensuring easy wiring and installation. Its compact design and stable performance make it a dependable solution for real-time current monitoring applications.
