3.5″ TFT Shield for Arduino — Display Module (No Touch)

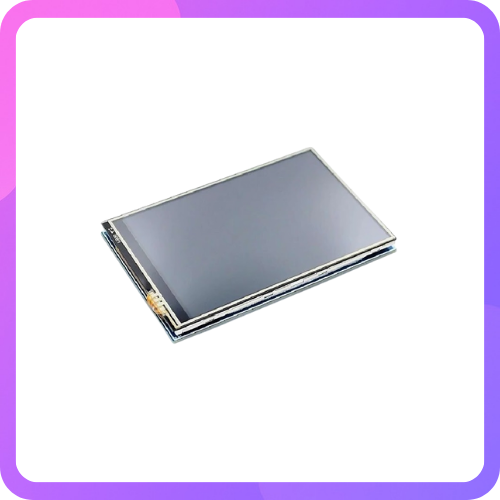

3.5 Inch TFT LCD Touch Display Shield for Arduino UNO (480×320)

The 3.5 inch TFT LCD Touch Display Shield for Arduino UNO comes fully assembled and tested, making it ready for immediate use. It requires no wiring or soldering — simply plug it directly into your Arduino UNO board and load the required library to get started within minutes. It works best with classic Arduino ATMEGA328-based boards.

This large and vibrant 3.5″ diagonal display features a bright TFT panel with four white LED backlights and supports 18-bit color, delivering up to 262,000 different shades for rich and colorful graphics. With a high resolution of 480×320 pixels, it provides significantly sharper visuals compared to standard 128×64 monochrome displays, allowing precise individual pixel control.

The module includes a built-in 4-wire resistive touchscreen, enabling accurate touch detection anywhere on the screen. It also features an integrated microSD card slot for storing images, fonts, and other data.

The display uses an 8-bit digital interface along with four control lines for communication. The backlight is enabled by default and can be controlled via a transistor connected to a digital pin if required.

This display shield is ideal for GUI development, embedded systems, industrial control panels, home automation interfaces, and interactive Arduino projects.

Package Includes:
1 x 3.5″ ILI9486 TFT Touch Shield LCD Module (480×320) for Arduino UNO
1 x Stylus
